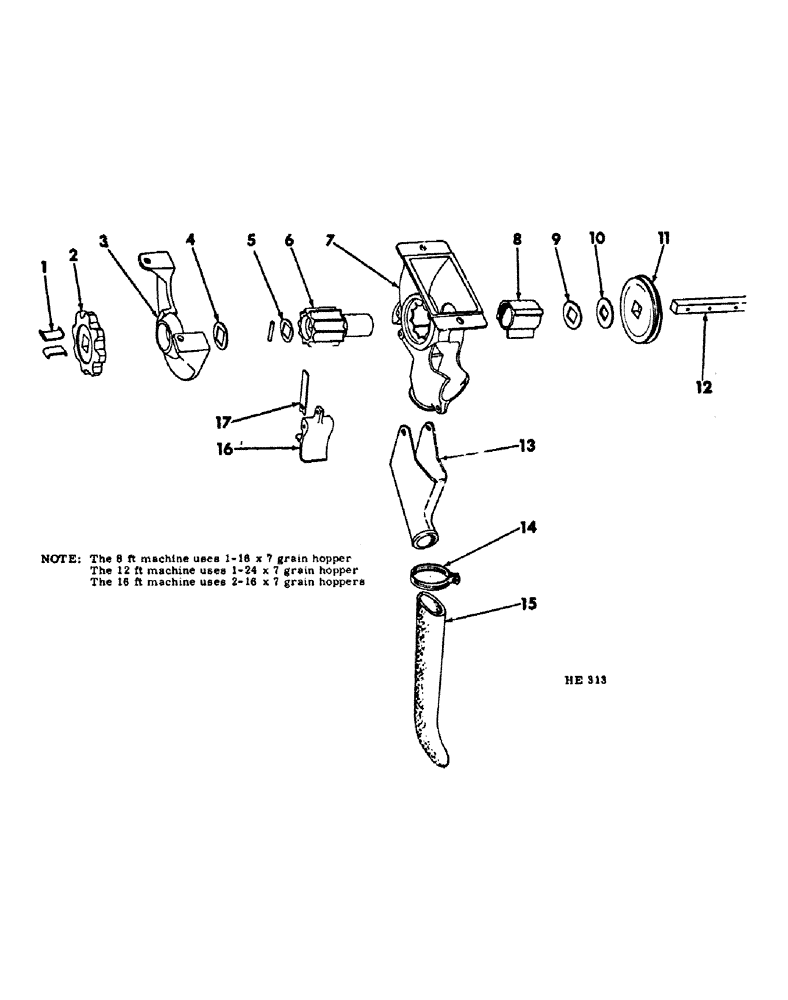

Запчасти Case IH 300 (10-22) - GRAIN SEEDING FEEDSHAFT

1

N11792

CLIP

sprocket retaining (2 used 8 ft; 4 used 12 & 16 ft machine)

1шт.

2

596913R1

SPROCKET ASSY.

SPROCKET, 10T feed shaft driven (1 used 8 ft; 2 used 12 & 16 ft machine)

1шт.

3

603119R2

HANGER

driven sprocket (1 used 8 ft; 2 used 12 & 16 ft machine)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT (2 per hanger)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

4

N11791

WASHER

sprocket retaining (1 used 8 ft; 2 used 12 & 16 ft machine)

1шт.

5

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

feed cup spring (16 used 8 ft; 24 used 12 ft; 32 used 16 ft machine)

1шт.

6

603111R1

ROLLER

ROLL, feed cup (16 used 8 ft; 24 used 12 ft; 32 used 16 ft machine)

1шт.

603134R1

PIN,4.76mm OD x 29.37mm L

FEED CUP PIN (1 per roll)

1шт.

7

603295R91

CUP

grain feed (1 per tube)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 X 1" BOLT (2 per cup)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

7

603816R91

CUP

grain feed (Includes 1 - 603112R1, block; 1 - 603295R91, cup & 1 - 603111R1, roll & 2 - 602106R1, washer) (16 used 8 ft machine) (24 used 12 ft machine) (32 used 16 ft machine)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 X 1" BOLT (2 per feed cup)

1шт.

120376

NUT,5/16"-18, G5

(1 per bolt) 5/16"-18, G5

1шт.

8

603112R1

BLOCK

feed cup shut-off (1 per cup)

1шт.

9

N11720

WASHER

21/32 sq-hole x 1-1/2 x 12 ga feed cup (1 used per feed cup)

1шт.

10

602106R1

SQ HOLE WASHER

21/32 sq-hole x 1-11/64 x 32 ga

1шт.

11

604420R1

GEAR

WORM, land measure gear (1 used 8 ft)

1шт.

11

596914R1

GEAR

WORM, land measure gear (2 used 12 & 16 ft machine) (w/identification plate 300C11112 or 300C1112)

1шт.

12

596911R1

BAR, grain feed shaft (1 used 8 ft; 2 used 16 ft machine)

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), (32 - 8 ft) (64 - 16 ft) 3/16" x 1 1/8"

1шт.

12

596912R1

BAR, grain shaft (12 ft machine)

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

48шт.

13

596915R1

TUBE,2.03" OD, 5.94, 3.38" Length

RECEIVER, grain tube (1 per tube)

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

14

995219R1

CLIP

CLAMP, grain tube (1 per tube)

1шт.

15

596916R1

TUBE,19.5" Length

grain (1 per feed cup)

1шт.

16

603108R11

BOTTOM

feed cup dump (Includes 1 - 603178R1, latch & 1 - 106883, rivet) (16 used 8 ft; 24 used 12 ft; 32 used 16 ft machine)

1шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), , 1 per bottom 3/16" x 2 1/2"

1шт.

17

603178R1

LATCH

dump bottom (16 used 8 ft; 24 used 12 ft; 32 used 16 ft machine)

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1 rivet used per latch Truss Hd, 3/16" x 3/8"

1шт.
