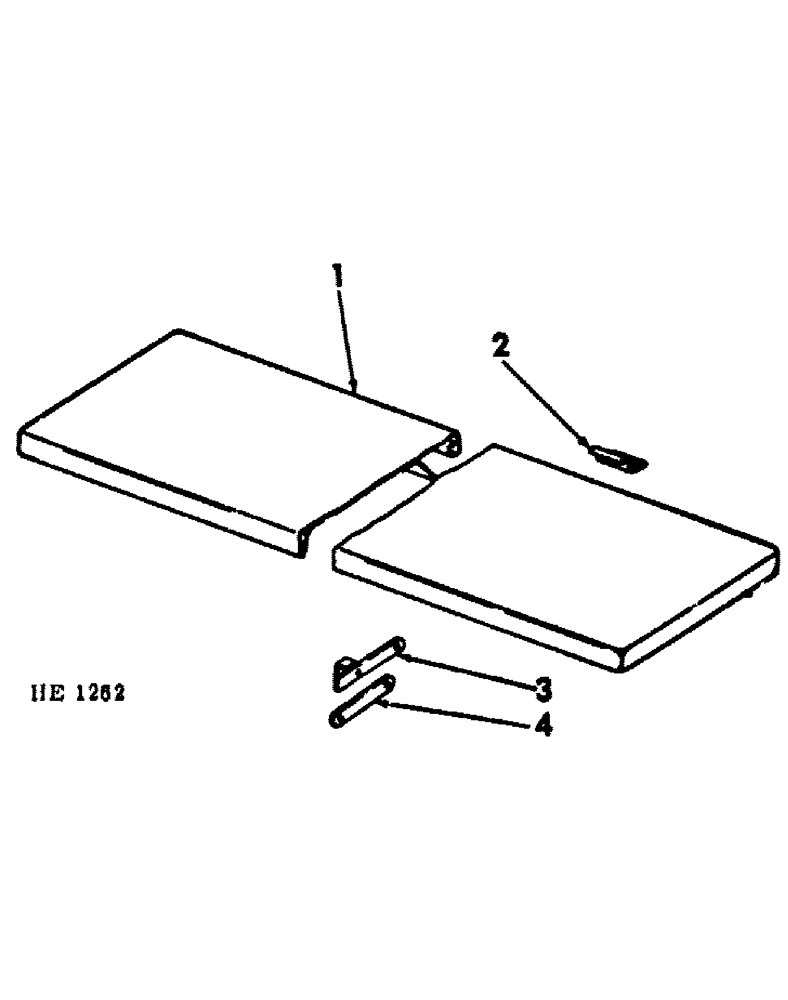

Запчасти Case IH 300 (10-21) - GRAIN HOPPER LID

1

596902R1

COVER, grain hopper (12 ft machine)

1шт.

1

596899R1

COVER, grain hopper (1 used 8 ft; 2 used 16 ft machine)

1шт.

2

603213R1

HINGE, grain hopper lid (4 used 8 ft; 6 used 12; 8 used 16 ft machine)

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 X 5/8" SLT-PAN-HD SCREW (2 per hinge)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per screw) 1/4"

1шт.

3

603176R11

STRAP, cover upper hinge (1 used 8 & 12 ft; 2 used 16 ft machine)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 used per strap 3/16" x 1"

1шт.

4

603177R1

STRAP, cover lower hinge (1 used 8 & 12 ft; 2 used 16 ft machine)

1шт.

104068

3/16 X 5/8" SMALL B-HD RIVET (1 used per strap) But Hd, 3/16" x 5/8"

1шт.

615002R1

WASHER

13/64 X 1-1/2" X 16 GA WASHER (2 used per rivet)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 used per strap 3/16" x 1"

1шт.
