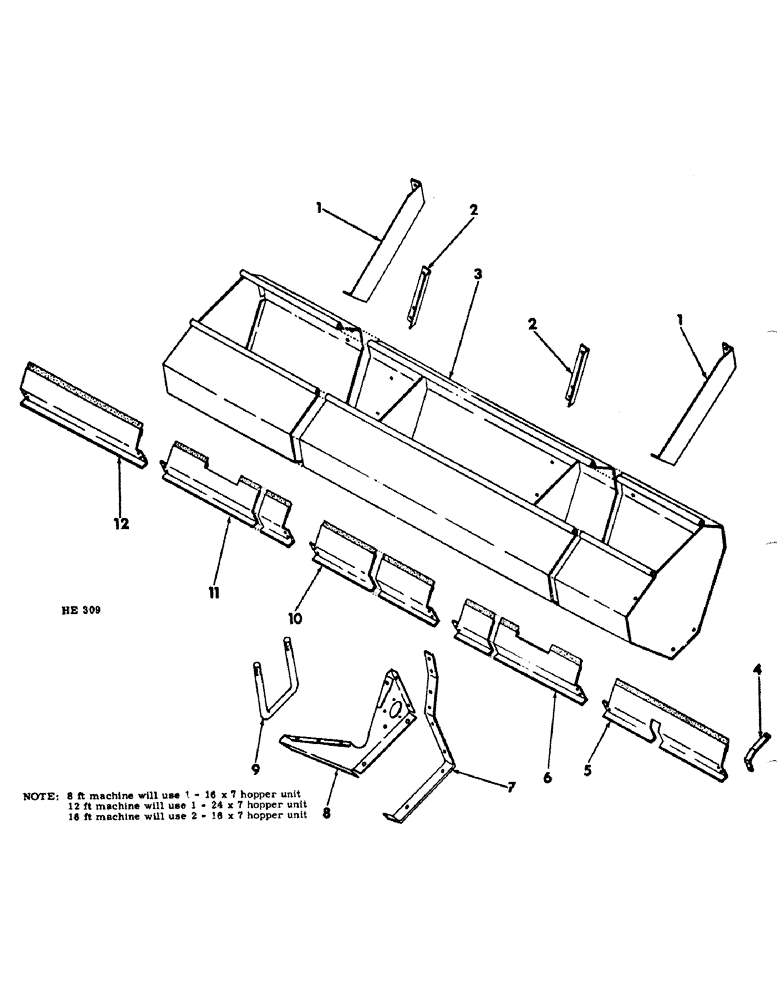

Запчасти Case IH 300 (10-20) - GRAIN SEEDING HOPPER

1

596898R1

REINFORCEMENT, grain hopper inner (2 used 8 & 12 ft machine) (4 used 16 ft machine)

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT (4 per reinforcement)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

2

596906R1

ANGLE, hopper inner stiffener machine (Used 12 & 16 ft machine)

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT (1 per angle)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

3

596890R1

HOPPER, 16 x 7 grain (8 ft machine)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

8шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

22828R1

WASHER,13/32" x 3/4" x .060", Sq Hole

13/32 SQ HOLE 3/4 X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

3

596894R2

HOPPER, 24 x 7 grain (12 ft machine)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

6шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

22828R1

WASHER,13/32" x 3/4" x .060", Sq Hole

13/32 SQ X 3/4 X 16 GA WASHER

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

3

596890R2

HOPPER, 16 x 7 grain (16 machine)

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

16шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 X 1/2" BOLT

19шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

4шт.

22828R1

WASHER,13/32" x 3/4" x .060", Sq Hole

13/32 SQ HOLE 3/4 X 16 GA WASHER

1шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

43шт.

4

596926R1

REINFORCEMENT, grain shield outer (2 used 8 & 12 ft machine) (4 used 16 ft machine)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT (1 per reinforcement)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

5

597167R1

SHIELD, feed cup outer RH (8 ft & 12 ft machine)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

5

597167R1

SHIELD, feed cup outer RH (16 ft machine on RH seeding hopper only)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

5

597163R1

SHIELD, feed cup outer RH (16 ft machine on LH seeding hopper only)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

6

597161R1

SHIELD, feed cup inner RH (1 used 8 ft machine) (2 used 16 ft machine)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

6

597166R1

SHIELD, feed cup inner RH (12 ft machine)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

7

596903R1

BRACE, hopper front (3 used 8 ft machine) (4 used 12 ft machine) (6 used 16 ft machine)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (4 per brace)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

8

596904R1

SUPPORT, grain hopper rear (3 used 8 ft machine) (4 used 12 ft machine) (6 used 16 ft machine)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT (1 per brace)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT (3 per brace)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (3 per brace)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

9

596905R1

BOLT,U, 5/8" - 11 x 9.63"

U-BOLT, grain hopper support clamping (3 used 8 ft machine) (4 used 12 ft machine) (6 used 16 ft machine)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (2 per bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (2 per bolt) 5/8"

1шт.

10

597164R1

SHIELD, feed cup centre (12 ft machine)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/18 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

11

597160R1

SHIELD, feed cup inner LH (1 used 8 ft machine) (2 used 16 ft machine)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

11

597165R1

SHIELD, feed cup inner LH (12 ft machine)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.

12

597162R1

SHIELD, feed cup outer LH (1 used 8 ft & 12 ft machine) (2 used 16 ft machine)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 X 5/8" BOLT

4шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

120376

NUT,5/16"-18, G5

4шт.
