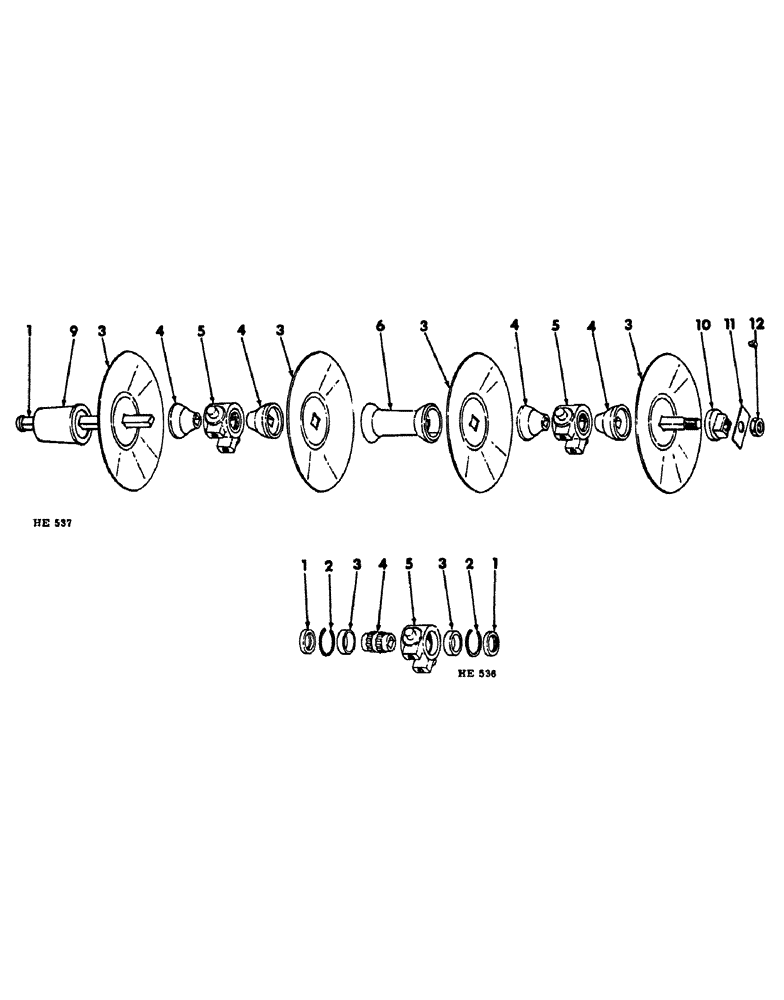

Запчасти Case IH 300 (10-19) - GANG DISK BEARING HOUSING

596774R11

HOUSING

rear, centre & front gang brg (Composed of all parts listed below) (4 used on 8 ft machine) (6 used on 12 ft machine) (8 used on 16 ft machine)

1шт.

1

597546R91

SEAL

gang brg housing oil (8 used on 8 ft machine) (12 used on 12 ft machine) (16 used on 16 ft machine)

1шт.

2

597793R1

SNAP RING,#268, 2.868", Int

RING, gang brg retaining (8 used on 8 ft machine) (12 used on 12 ft machine) (16 used on 16 ft machine)

1шт.

3

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP, gang brg (8 used on 8 ft machine) (12 used on 12 ft machine) (16 used on 16 ft machine)

1шт.

4

469834R91

BEARING ASSY,29.36mm ID x 69.01mm OD x 41.27mm W

CONE, gang brg (4 used on 8 ft machine) (6 used on 12 ft machine) (8 used on 16 ft machine)

1шт.

5

HOUSING, rear, centre & front gang brg for service order 1 - 596774R11, housing) (4 used on 8 ft machine) (6 used on 12 ft machine) (8 used on 16 ft machine) (NSS)

1шт.

18425R91

LUBE NIPPLE,1/8"-27 NPT x .83" lg

1/8" LUB-FITTING (1 per housing)

1шт.
