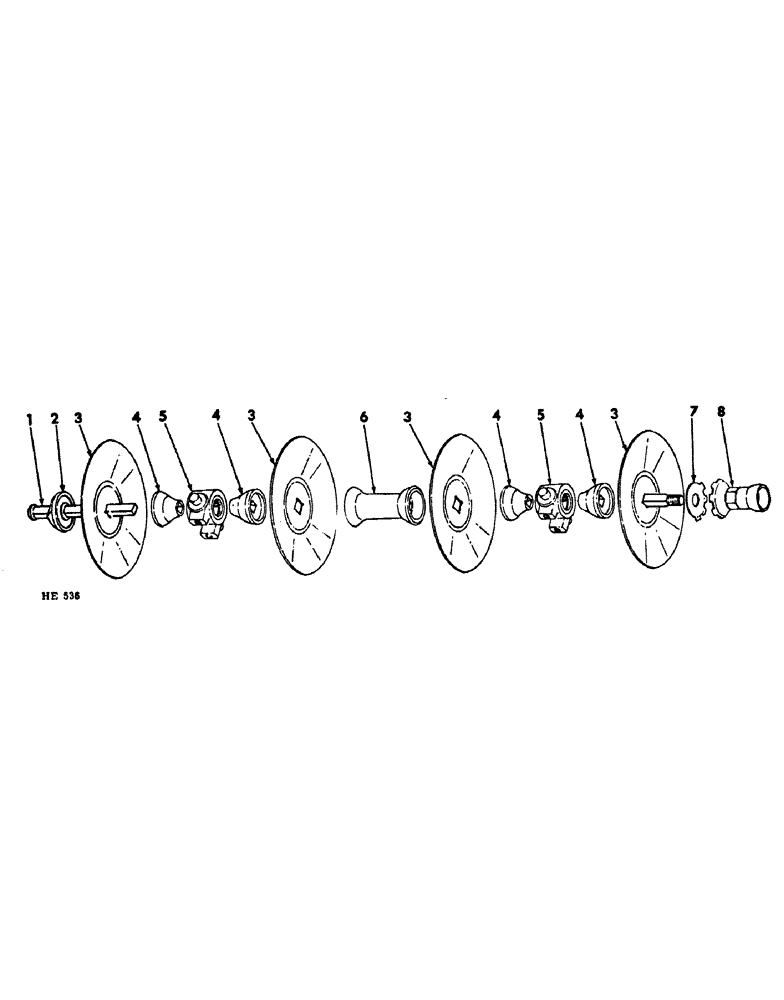

Запчасти Case IH 300 (10-18) - DISK GANG UNIT

1

598040R1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 52.60"

rear, centre & front gang arbour (2 used on 8 ft machine) (3 used on 12 ft machine) (4 used on 16 ft machine)

1шт.

2

596769R1

SQ HOLE WASHER

WASHER, rear arbour bolt

1шт.

3

482986R1

DISC

DISK, 18" single curvature type gang (16 used on 8 ft machine) (24 used on 12 ft machine) (32 used on 16 ft machine)

1шт.

3

482973R1

DISC

DISK, 20" single curvature type gang (16 used on 8 ft machine) (24 used on 12 ft machine) (32 used on 16 ft machine)

1шт.

3

24659R1

DISC

DISK, 18" double curvature type gang (16 used on 8 ft machine) (24 used on 12 ft machine) (32 used on 16 ft machine)

1шт.

3

25437R1

DISC

DISK, 20" double curvature type gang (16 used on 8 ft machine) (24 used on 12 ft machine) (32 used on 16 ft machine)

1шт.

4

596773R2

SPOOL

rear, centre & front gang brg spacing (8 used 8 ft machine) (12 used 12 ft machine) (16 used 16 ft machine)

1шт.

5

596774R11

HOUSING

rear, centre & front gang brg (For component parts of this assembly refer to "gang disk bearing housing" in section 10 of this catalog)

1шт.

6

596772R1

SPOOL

rear, centre & front gang disk spacing (10 used 8 ft machine) (15 used 12 ft machine) (20 used 16 ft machine)

1шт.

7

596771R1

LOCK WASHER

LOCK, rear ball, front & gang connecting (1 used 8 ft machine) (2 used 12 ft machine) (3 used 16 ft machine)

1шт.

8

596770R1

CONNECTOR, ELEC

BALL, rear & centre gang flexible connection (1 used 8 ft machine) (2 used 12 ft machine) (3 used 16 ft machine)

1шт.

9

596779R1

HOLDER

front & centre gang ball (1 used 8 ft machine) (2 used 12 ft machine) (3 used 16 ft machine)

1шт.

10

PA4167

WASHER

front gang arbour bolt

1шт.

11

P34101

LOCK

STRIP, front gang arbour

1шт.

12

220094

NUT,1 1/8"-7, G5

1-1/8" front gang bolt

1шт.
