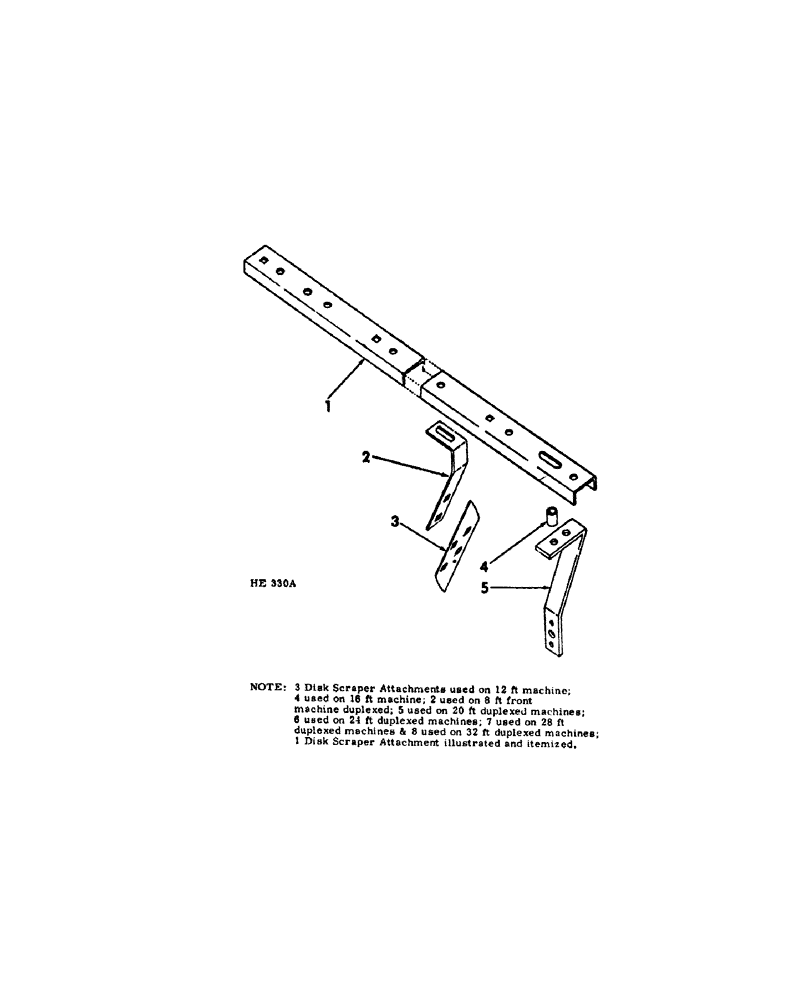

Запчасти Case IH 300 (10-17) - DISK SCRAPER ATTACHMENT

1

597013R2

CHANNEL

disk scraper support

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 X 2-1/2" BOLT

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3" BOLT

1шт.

22191R1

WASHER

17/32 X 1-3/4 X 7 GA WASHER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

597015R1

SUPPORT

disk scraper

8шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1/2 X 1-1/4" CRG BOLT

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

597016R1

BLADE

disk scraper

8шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

4

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

1/2 x 1-1/2" pipe

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2 X 3" BOLT

1шт.

22191R1

WASHER

17/32 X 1-3/4 X 7 GA WASHER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

597014R1

BRACE

disk scraper channel

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
