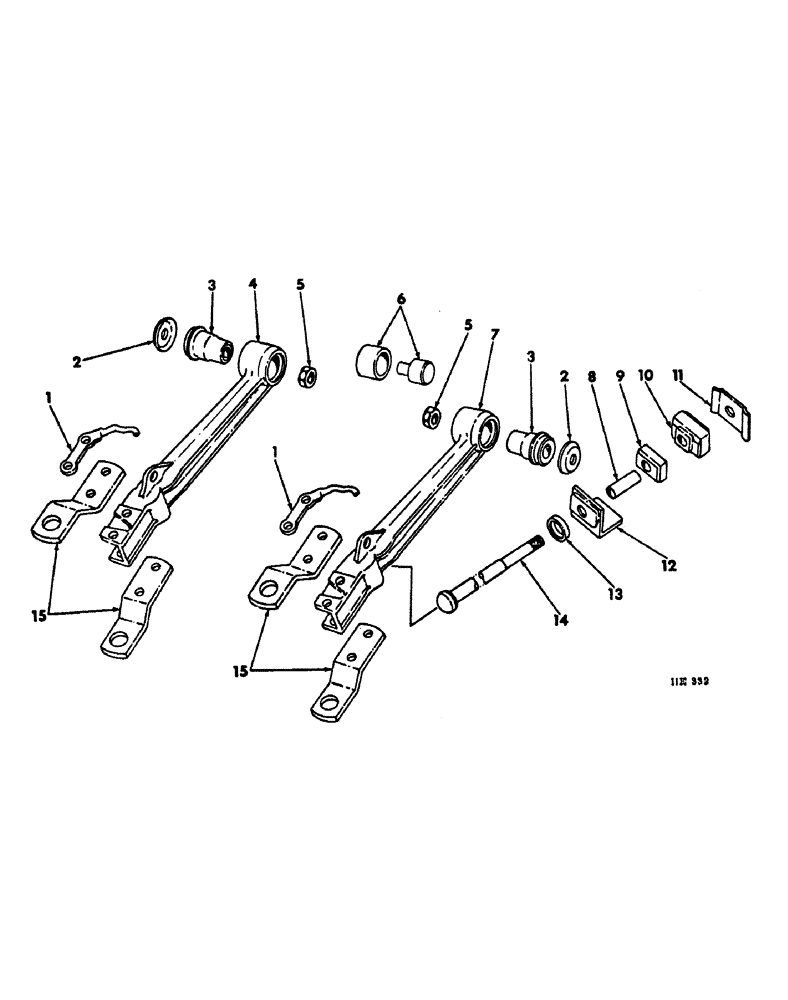

Запчасти Case IH 300 (10-16) - DISK GANG DRAG LINK

1

596932R2

GUIDE,0.375" Diameter, 2.6, 1.9" Length

grain tube (4 used 8 ft machine) (6 used 12 ft machine) (8 used 16 ft machine)

1шт.

2

596784R1

WASHER

drag link bushing (4 used 8 ft machine) (6 used 12 ft machine) (8 used 16 ft machine)

1шт.

3

596781R1

BUSHING,15.95mm ID x 52.32mm OD x 65.02mm L

drag link (4 used 8 ft machine) (6 used 12 ft machine) (8 used 16 ft machine)

1шт.

4

596780R11

LINK

gang drag front (Includes 1 - 596781R1, bushing) (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

5

596785R1

BUSHING

BAR, drag link front bushing (4 used 8 ft machine) (6 used 12 ft machine) (8 used 16 ft machine)

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8 X 4-1/2" BOLT (1 per bar)

1шт.

318790C1

NUT

5/8" LK-NUT (1 per bolt)

1шт.

6

597182R91

TOOL KIT

KIT, gang drag link service tool

1шт.

7

596782R11

LINK

gang drag rear (Includes 1 - 596781R1 & 1 - 596783R1, bushing) (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

8

596787R1

BUSHING

thrust rod (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

9

421595C1

BUSHING

thrust rod rear (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

10

596788R1

THRUST RING

BUSHING, thrust rod front (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

11

596789R1

THRUST WASHER

thrust rod front bushing (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

12

596790R1

THRUST WASHER

thrust rod rear bushing (2 used 8 ft machine) (3 used 12 ft machine) (4 used on 16 ft machine)

1шт.

13

596783R1

BUSHING

thrust rod head seat (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

14

596786R1

ROD

gang thrust (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

272334

SLOTTED NUT,3/4"-16, G5, Thk

3/8" - NF SLT NUT (1 per rod)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1 per rod 3/16" x 1 1/2"

1шт.

15

596868R1

BRACE

drag link (8 used 8 ft machine) (12 used 12 ft machine) (16 used 16 ft machine)

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2 X 3-3/4" BOLT (1 per brace)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 per bolt) 1/2"-13, G5

1шт.
