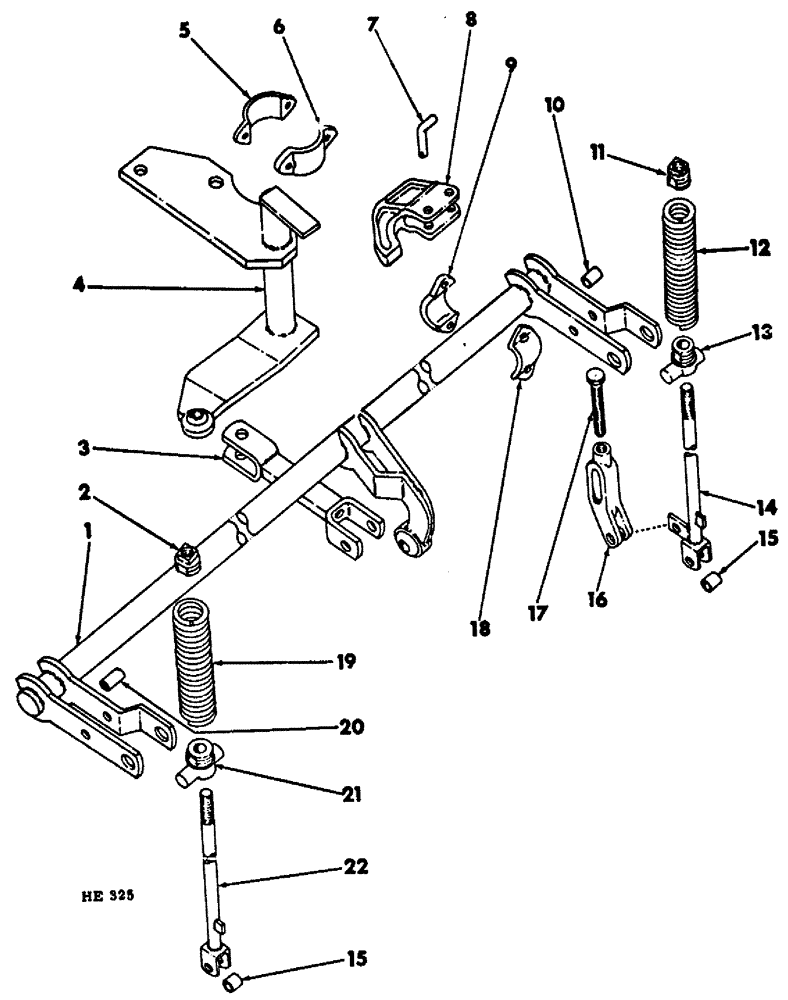

Запчасти Case IH 300 (10-14) - ROCKSHAFT

1

598086R91

ROCKSHAFT, 8 ft machine, Composed of:

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT

2шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

576755R1

PLUG

2шт.

596756R1

PLUG

1шт.

ROCKSHAFT (NSS)

1шт.

619225R1

SPACER

2шт.

552920R2

SPACER,3/4" Tube x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

1

596747R92

ROCKSHAFT

12 ft machine, Composed of:

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT

3шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

576755R1

PLUG

3шт.

596756R1

PLUG

1шт.

ROCKSHAFT (NSS)

1шт.

568217R1

BUSHING,3/4" Tube x 1 1/4"

SPACER

3шт.

552920R2

SPACER,3/4" Tube x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

1

596757R92

SHAFT

ROCKSHAFT, 16 ft machine, Composed of:

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT

4шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

576755R1

PLUG

4шт.

596756R1

PLUG

1шт.

ROCKSHAFT (NSS)

1шт.

568217R1

BUSHING,3/4" Tube x 1 1/4"

SPACER

4шт.

552920R2

SPACER,3/4" Tube x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

2

596794R1

PLUG

gang lift extension spg rear

1шт.

3

596766R1

BAR

lift connecting

1шт.

518505R1

HEADED PIN,3/4" x 3"

3/4 X 3" STD-HD-DLD PIN

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

596761R1

LEVER

rockshaft lift

1шт.

5

597977R1

CAP

lift lever brg outer

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 X 2-1/2" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

6

597976R1

CAP

lift lever brg inner

2шт.

7

602801R1

PIN

retainer locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.

8

604564R2

RETAINER

hyd cyl

1шт.

K156

HEADED PIN,5/8" x 2 1/8"

5/8 X 2-1/8" STD-HD-DLD PIN

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

9

597976R1

CAP

rockshaft brg inner (4 used 8 ft machine) (5 used 12 ft machine) (6 used 16 ft machine)

1шт.

10

568217R1

BUSHING,3/4" Tube x 1 1/4"

SPACER, rockshaft arm (2 used 8 ft machine) (3 used 12 ft machine) (4 sed 16 ft machine)

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2 X 2-3/4" CRG BOLT (1 used per spacer)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 used per bolt) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

596793R1

PLUG

gang lift extension spg (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

12

596791R1

SPRING

gang lift extension (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

13

596755R1

PLUG

rockshaft arm spg (2 used 8 ft machine) (3 used 12 ft machine) (4 used 6 ft machine)

1шт.

14

596795R1

ROD

gang lift spg front

1шт.

280954

NUT,3/4"-10, G5

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

596799R1

BUSHING

spg rod connecting (3 used 8 ft machine) (4 used 12 ft machine) (5 used 16 ft machine)

1шт.

16

596801R1

CLEVIS

front gang stop

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

5/8 X 1-3/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

17

596802R1

BOLT,Hex, 5/8" - 18 x 4 1/4", Gr 2

front gang stop

1шт.

425-110

5/8" - NF NUT

1шт.

18

597977R1

CAP

rockshaft brg outer (4 used 8 ft machine) (5 used 12 ft machine) (6 used 16 ft machine)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (1 used per cap) 1/8"-27 x .66 lg

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 X 2-1/2" BOLT (2 Per cap)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (1 per bolt)

1шт.

19

596792R1

SPRING

gang lift extension rear

1шт.

20

552920R2

SPACER,3/4" Tube x 1 1/2"

rockshaft arm rear

1шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1/2 X 3" CRG BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

596756R1

PLUG

rockshaft arm spg rear

1шт.

22

506800R1

ROD, gang lift spring (2 used 8 ft machine) (3 used 12 ft machine) (4 used 16 ft machine)

1шт.

280954

NUT,3/4"-10, G5

1 used per rod 3/4"-10, G5

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT (1 used per rod)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 used per bolt) 1/2"-13, G5

1шт.
