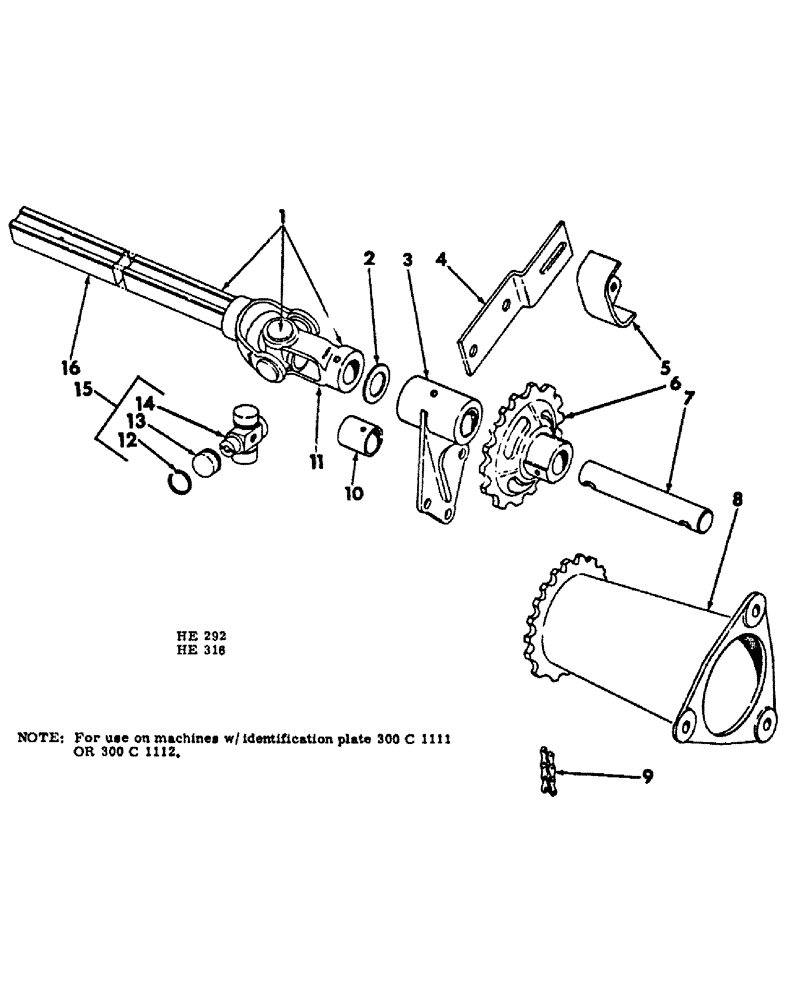

Запчасти Case IH 300 (10-13) - LAND WHEEL GRAIN DRIVE AND UNIVERSAL

1

596977R91

UNIVERSAL, land wheel drive, Composed of:

1шт.

208959R91

KIT

CROSS PKGE

1шт.

597148R1

YOKE & SHAFT

1шт.

597147R1

YOKE

1шт.

379990R1

HEADED PIN

3/8 X 2" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

3

596974R11

BRACKET, land weel drive shaft (Includes 2 - 594978R1, bushings)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" BOLT

3шт.

4

596973R1

BRACE, land wheel chain tightener

1шт.

5

583619R1

BLOCK

land wheel chain tightener

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

596976R1

SPROCKET ASSY.

SPROCKET, 12T wheel drive driven

1шт.

Q850

PIN

3/8 X 1-7/8" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

596975R1

SHAFT, land wheel drive

1шт.

8

596971R1

SPROCKET ASSY.

SPROCKET, 13T wheel drive

1шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-NF X 2-1/4" BOLT

3шт.

9

CHAIN, land weel drive 1-1/4" pitch standard (For service order 1 - 569089R91, 10 ft chain, reduce to 23 links, add 1 - 456980R91, connecting link and 1 - 456929R91, offset link)

1шт.

10

594978R1

BUSHING

bracket

2шт.

11

597147R1

YOKE

universal joint

1шт.

12

975666R1

RING

brg snap

4шт.

13

BEARING, center cross (For service order 1 - 208959R91, cross) (NSS)

4шт.

14

CROSS, center (For service order 1 - 208959R91, cross) (NSS)

1шт.

17238R1

1/4" - NF 65 DEGREE LUB-FITTING

1шт.

15

208959R91

KIT

CROSS, universal center, Composed of:

1шт.

CROSS (NSS)

1шт.

BEARING (NSS)

4шт.

975666R1

RING

1шт.

17238R1

FITTING

1шт.

16

597148R1

YOKE & SHAFT, universal joint

1шт.
