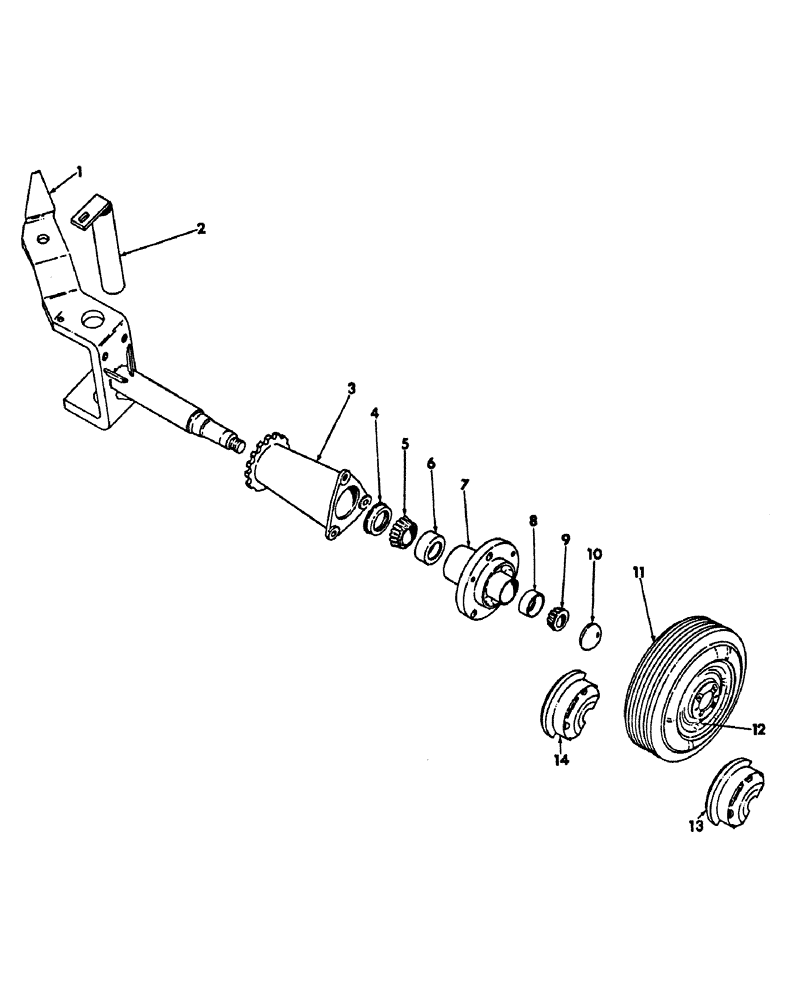

Запчасти Case IH 300 (10-12) - LANDWHEEL

1

596843R1

AXLE

land wheel

1шт.

619373R1

WASHER

29/32 X 2 X 7 GA PLAIN WASHER

1шт.

70120D

SLOTTED NUT,7/8"-14

7/8" - NF SLT JAM NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

596848R1

PIN

land wheel axle

1шт.

22188R1

WASHER

2-9/32 X 3 X 14 GA WASHER

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

3

596971R1

SPROCKET ASSY.

SPROCKET, 13T land wheel drive

1шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-NF X 2-1/4" BOLT

3шт.

4

606556R91

OIL SEAL

SEAL, hub oil (Opt w/594704R91, seal)

1шт.

4

594704R91

OIL SEAL

SEAL, hub oil (Opt w/606556R91, seal)

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner brg

1шт.

6

663558R1

BEARING CUP

CUP, wheel hub inner brg

1шт.

7

596851R21

HUB

land wheel (Includes 1 - 651817R1, cup & 1 - 663558R1, cup)

1шт.

8

651817R1

BEARING CUP

CUP, wheel hub outer brg

1шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer brg

1шт.

10

663906R1

CAP

wheel hub

1шт.

11

TIRE & TUBE, 9.50 - 14 6 ply rib tread code I-2

1шт.

12

481344R91

WHEEL

14 x 8 KB land

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

3шт.

181702

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

1/2-NF X 1-3/4" BOLT

3шт.

U18588

NUT

WHEEL NUT

3шт.

13

597020R1

WEIGHT, 14" wheel outer

2шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1/2 X 6-1/2" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

14

597020R1

WEIGHT, 14" wheel inner

2шт.

21526R1

1/2 X 11" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
