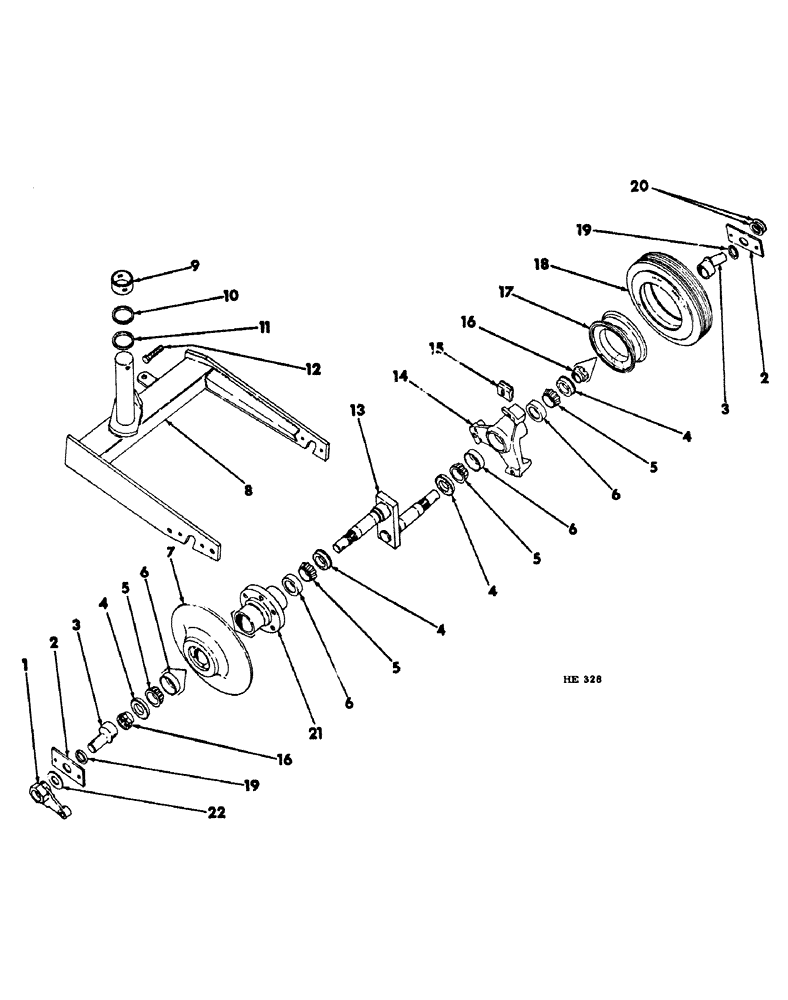

Запчасти Case IH 300 (10-08) - DUAL REAR FURROW WHEEL

1

604727R1

BRACKET

CRANK, furrow wheel locating

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

P14608

AXLE PIN

3/4 X 2-3/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

2

604733R1

PLATE

BLOCK, fork locating

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

604728R1

EXTENSION

axle

2шт.

616387R1

PIN,3/8" x 2", Coiled

1/4 X 2" COILED-SPG PIN

3шт.

4

594704R91

OIL SEAL

SEAL, wheel hub oil (Opt w/606556R91, seal)

4шт.

4

606556R91

OIL SEAL

SEAL, wheel hub oil (Opt w/594704R91, seal)

4шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub brg

4шт.

6

663558R1

BEARING CUP

CUP, furrow & transport wheel hub brg

4шт.

7

604726R1

WHEEL

rear furrow

1шт.

NLS

NO LONGER SERVICED

1/2 - NF X 3-3/4" BOLT

6шт.

8

596870R1

FORK

dual rear furrow wheel

1шт.

9

604738R1

BUSHING

SPACER, fork locking

1шт.

Q846

PIN,7/16" x 3 3/8"

7/16 X 3-3/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

22188R1

WASHER

2-9/32 x 3 x 14 ga

1шт.

11

521159R1

WASHER

2-5/16 x 3 x 11 ga plain

2шт.

12

462645R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Full Thd

rear furrow wheel beam stop

1шт.

280954

NUT,3/4"-10, G5

1шт.

13

596878R1

AXLE

dual rear furrow wheel

1шт.

14

596882R11

HUB

transport wheel (Includes 2 - 663558R1, cups)

1шт.

15

604725R1

CLAMP

rear transport wheel

3шт.

181702

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

1/2 - NF X 1-3/4" BOLT

3шт.

20869R1

WASHER

17/32 X 7/8 X 16 GA WASHER

3шт.

16

596881R1

NUT

1-1/2" - NF slt special

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

17

604739R1

RIM

WHEEL, 15 x 5 KB rear transport

1шт.

18

TIRE & TUBE, rear transport wheel 5.90 x 15 6 ply rib tread code I-1

1шт.

19

Q5004

DISC,32.5mm ID x 57mm OD x 1.5mm Thk

WASHER, 1-9/32 x 2-1/4 x 16 ga plain

2шт.

20

608700R1

WASHER

1-9/32 x 2 x 16 ga

1шт.

21

596883R11

HUB

furrow wheel (Includes 2 - 663558R1, cups)

1шт.

22

21226R1

WASHER

1-9/32 x 2 x 11 ga

2шт.
