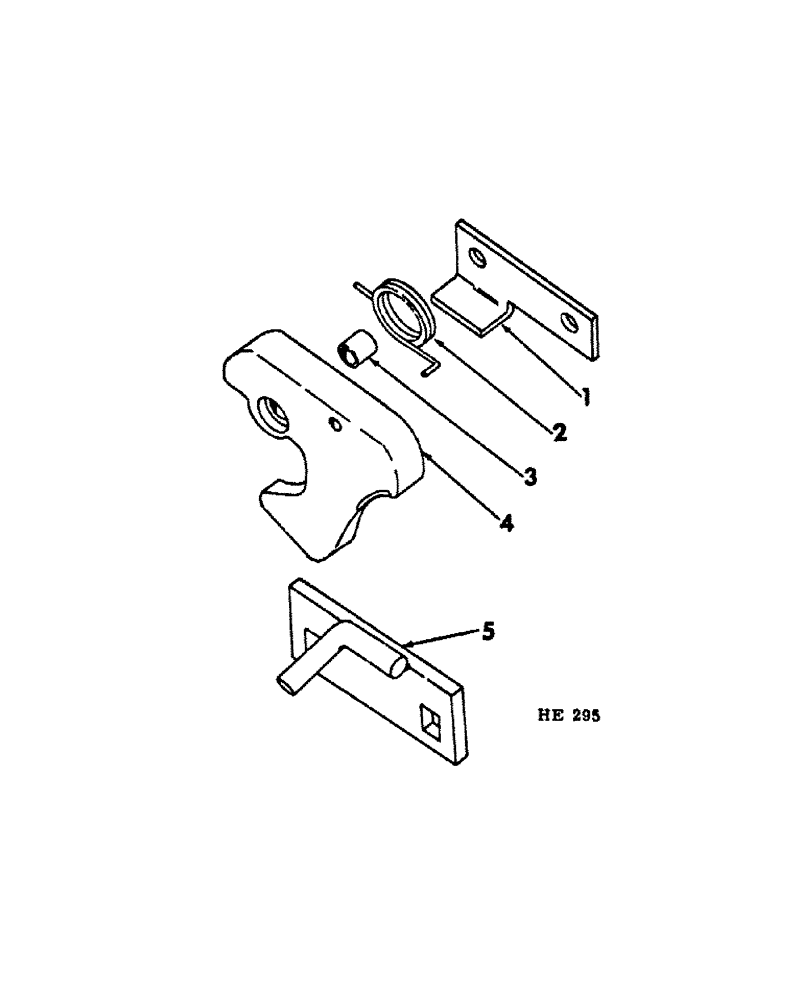

Запчасти Case IH 300 (10-07) - REAR FURROW WHEEL RETURN SPRING (SPECIAL)

1

597026R1

CABLE

return spg (Note A)

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

2

597027R1

BAR

return spg (Note B)

1шт.

H2808

HEADED PIN,5/8" x 2"

5/8 X 2" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

590259R1

SPRING

rear wheel return

1шт.

4

590001R1

PLUG

return spg

1шт.

5

612235R1

BOLT,Hex, 1/2" - 13 x 7"

return spg adjusting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
