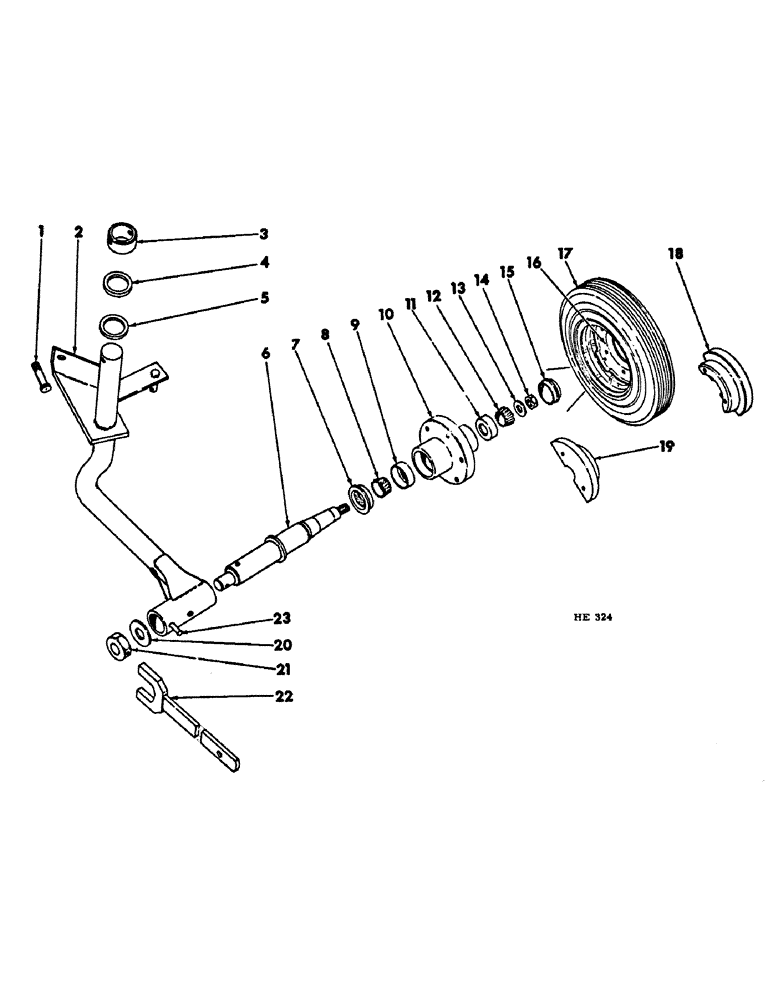

Запчасти Case IH 300 (10-06) - SINGLE REAR FURROW WHEEL

1

462645R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Full Thd

rear furrow wheel beam stop

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

596863R1

SUPPORT

rear furrow wheel axle

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

604738R1

BUSHING

SPACER wheel shank locking

1шт.

Q846

PIN,7/16" x 3 3/8"

7/16 X 3-3/8" STD-HD DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

22188R1

WASHER

2-9/32 x 3 x 14 ga

1шт.

5

521159R1

WASHER

2-5/16 x 3 x 11 ga support

2шт.

2

596831R1

AXLE

rear furrow wheel

1шт.

21749R1

WASHER

1-9/32 X 2-1/2 X 16 GA WASHER

1шт.

23447R1

WASHER

2-5/32 X 3 X 14 GA WASHER

1шт.

7

606556R91

OIL SEAL

SEAL, wheel hub oil (Opt w/594704R91, seal)

1шт.

7

594704R91

OIL SEAL

SEAL, wheel hub oil (Opt w/606556R91, seal)

1шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner brg

1шт.

9

663558R1

BEARING CUP

CUP, wheel hub inner brg

1шт.

10

606468R11

HUB

rear furrow wheel (Includes 651817R1 & 663558R1, cups)

1шт.

11

651817R1

BEARING CUP

CUP, wheel hub outer brg

1шт.

11

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer brg

1шт.

13

619373R1

WASHER

29/32 x 2 x 7 ga

1шт.

14

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8" - NF slt axle

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

15

663906R1

CAP

wheel hub

1шт.

16

604700R91

RIM

WHEEL, 15 x 5 KB rear furrow

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

6шт.

17

TIRE & TUBE, 7.60 x 15 6 ply rib-tread code I-1

1шт.

18

604753R1

WEIGHT

rear furrow wheel small

2шт.

19787R1

BOLT,Hex, 1/2" - 13 x 8", Gr 5

1/2 X 8" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

19

604754R1

WEIGHT

rear furrow wheel large

2шт.

19787R1

BOLT,Hex, 1/2" - 13 x 8", Gr 5

1/2 X 8" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20

604925R1

WASHER

1-11/32 x 2-3/4 x 1/4"

1шт.

21

596834R1

BAR

furrow wheel adjusting

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

22

596803R1

SPECIAL WRENCH

TOOL, gang

1шт.

23

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4" std-hd-dld

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.
