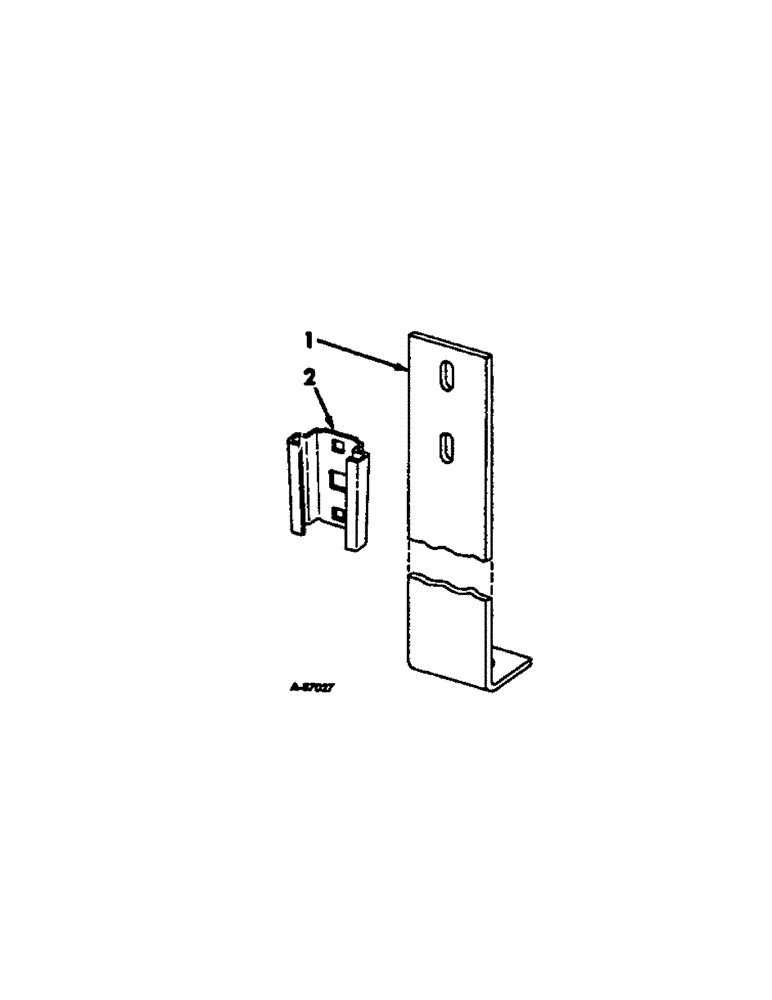

Запчасти Case IH 150 (Y-7[A]) - SAFETY LAMP SOCKET UNIT & PRODUCT GRAPHICS

1

521996R2

SUPPORT

BRACKET, safety lamp

1шт.

21074R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 2

3/4-10 x 4-3/4 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

398976R1

BRACKET

SOCKET, safety lamp bracket, will work for 363919R1

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

2750501R1

PRODUCT GRAPHIC

IH

1шт.

2751266R1

PRODUCT GRAPHIC

International

1шт.

2754031R1

PRODUCT GRAPHIC

model designation

1шт.
