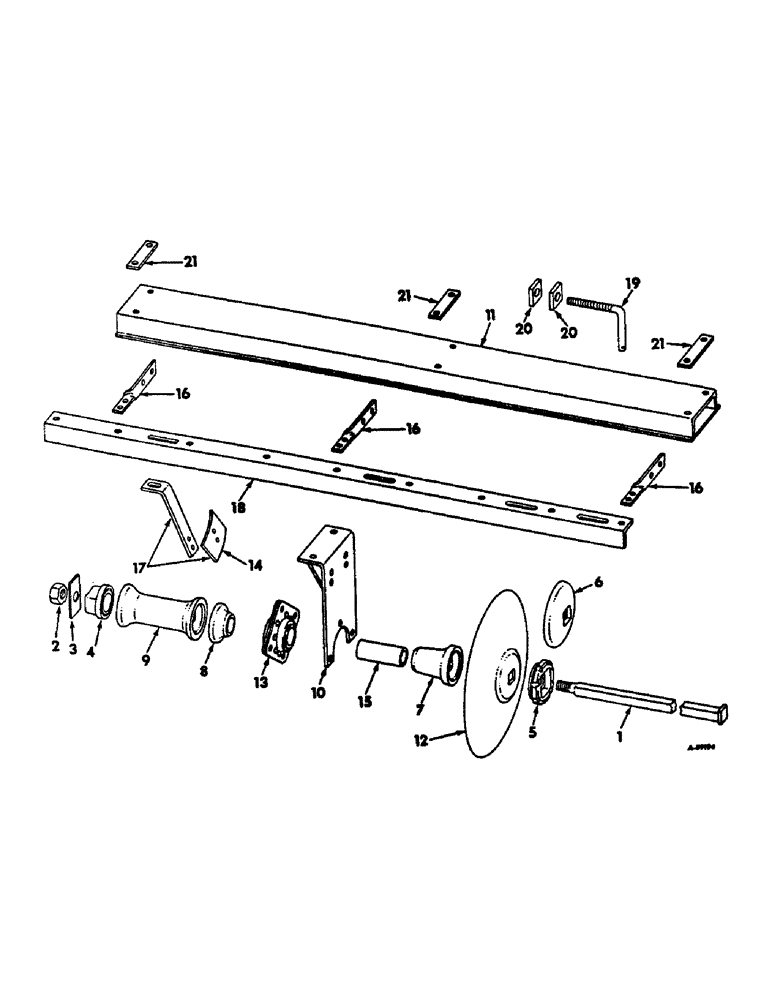

Запчасти Case IH 150 (Y-5) - MAIN GANGS AND SCRAPERS
№
Артикул
Название
Примечание
Количество
1
468583R2
BOLT (SPREADER),1 1/8"-7 x 79.4"
BOLT, arbor, 4 for unit B, 2 for unit C
1шт.
1
481845R1
BOLT,1 1/8"-7 x 86.9"
arbor, 4 for unit E, 2 for unit F
1шт.
1
468582R2
BOLT (SPREADER),1 1/8"-7 x 76.7"
BOLT, arbor, 4 for unit A, 2 for unit C
1шт.
1
481844R1
BOLT,1 1/8"-7 x 85.4"
arbor, 4 for unit D, 2 for unit F
1шт.
3
P34101
LOCK
arbor bolt nut
4шт.
4
481611R1
WASHER
arbor nut
4шт.
5
466950R2
WASHER
head
2шт.
6
468584R2
SQ HOLE WASHER
bumper
2шт.
7
472591R2
SPOOL
bearing long
12шт.
7
472593R2
SPOOL
bearing, 6 for units C & F, 12 for units A & D
1шт.
8
472592R2
SPOOL
bearing short, 6 for units C & F, 12 for units B & E
1шт.
9
481416R1
SPOOL
spacing, 14 for unit C, 16 for units F, 28 for unit B, 32 for unit E
1шт.
9
481417R1
SPOOL
spacing, 10 for unit C, 12 for unit F, 20 for unit A, 24 for unit D
1шт.
10
486842R1
STANDARD ASSY, bearing
12шт.
11
486836R1
BAR ASSY, front gang
2шт.
11
486839R1
BAR ASSY, rear gang
2шт.
12
140561/2
DISC
BLADE, 18 in. x 10 ga solid disk
1шт.
12
143521/2
NOTCHED DISK
BLADE, 18 in. x 10 ga notched disk
1шт.
12
482986R2
DISK HARROW
BLADE, 18 in. x 8 ga solid disk
1шт.
12
482987R2
DISK HARROW
BLADE, 18 in. x 8 ga notched disk
1шт.
12
651199R1
DISC
BLADE, 18 in. x 9 ga solid disk
1шт.
12
651200R1
DISK HARROW
BLADE, 18 in. x 9 ga notched disk
1шт.
12
143531/2
NOTCHED DISK
BLADE, 20 in. x 9 ga notched disk
1шт.
12
143811/2
DISC
BLADE, 20 in. x 9 ga solid disk
1шт.
12
472217R1
DISK HARROW
BLADE, 20 in. x 8 ga solid disk
1шт.
12
482973R1
DISC
BLADE, 20 in. x 7 ga solid disk
1шт.
12
482974R1
DISC
BLADE, 20 in. x 7 ga notched disk, 36 for unit A, 40 for unit C & D, 44 for units B & F, 48 for unit E
1шт.
12
PA13373
DISC
BLADE, 22 in. x 6 ga solid disk
1шт.
12
P24425
DISC
BLADE, 22 in. x 6 ga notched disk
1шт.
12
472218R1
DISC
BLADE, 22 in. x 7 ga solid disk
1шт.
12
472219R1
DISC
BLADE, 22 in. x 7 ga notched disk
1шт.
12
482975R1
PLOW DISC
BLADE, 22 in. x 6 ga solid disk
1шт.
12
482976R1
DISK HARROW
BLADE, 22 in. x 6 ga notched disk, 36 for unit A, 4o for unit D
1шт.
13
ST491
BEARING
std ball regreasable
12шт.
13
ST490
BEARING
std ball
12шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2-13 x 1-1/2 C-Z hex-hd mach
36шт.
607895
WASHER, 17/32 x 1 x 11 ga C-Z
36шт.
120384
WASHER,1/2"
LOCK, 1/2"
36шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
36шт.
14
483096R1
STRAP
BLADE, scraper, 1 per scraper assy
1шт.
106930
RIVET,Tr Hd, 3/8" x 1"
3/8 x 1 truss-hd, 2 per blade
1шт.
15
652383R1
BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L
arbor bolt support, 6 for units C & F, 12 for units B & E
1шт.
15
472594R1
BUSHING,38.91mm ID x 44.45mm OD x 154mm L
arbor bolt support, 6 for units C & F, 12 for units A & D
1шт.
18842R1
BOLT,Hex, 3/4"-10 x 4 1/2", G2
3/4-10 x 4-1/2 C-Z hex-hd cap
23шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
23шт.
16
482073R1
BRACKET
scraper bar support
12шт.
18497R1
BOLT,Hex, 1/2"-13 x 1 3/4", G2
1/1-13 x 1-3/4 C-Z hex-hd mach
24шт.
120384
WASHER,1/2"
LOCK, 1/2"
24шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
24шт.
17
486832R91
BLADE ASSY, scraper LH
1шт.
17
486833R91
BLADE ASSY, scraper RH, 16 for unit A, 18 for unit C & D, 20 for units B & F, 22 for unit E
1шт.
465567R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per scraper assy 1/2"-13, G5
1шт.
18
468551R2
ANGLE
scraper bar front LH, for unit B
1шт.
18
468552R2
ANGLE
scraper bar front RH, for unit B
1шт.
18
472574R2
ANGLE
scraper bar rear, 2 for units B & C
1шт.
18
481824R1
ANGLE, scraper bar front LH, for unit E
1шт.
18
481825R1
ANGLE, scraper bar front RH, for unit E
1шт.
18
481826R1
ANGLE, scraper bar rear LH, for units E & F
1шт.
18
481827R1
ANGLE, scraper bar rear RH, for units E & F
1шт.
18
479308R2
ANGLE
scraper bar front LH, for units C & A
1шт.
18
479309R2
ANGLE
scraper bar front RH, for units C & A
1шт.
18
479306R2
ANGLE
scraper bar rear LH, for unit A
1шт.
18
479307R2
ANGLE, scraper bar rear RH, for unit A
1шт.
18
481828R1
ANGLE, scraper bar front LH, for units F & D
1шт.
18
481829R1
ANGLE, scraper bar front RH, for units F & D
1шт.
18
481830R1
ANGLE, scraper bar rear LH, for unit D
1шт.
18
481831R1
ANGLE, scraper bar rear RH, for unit D
1шт.
18573R1
CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2
BOLT, 5/8-11 x 1-1/2 C-Z sq-nk crg
1шт.
608595R1
NUT
5/8-11 C-Z hex. lock, 3 per scraper bar
1шт.
19
468603R1
ROD,7/8" - 9 x 6 23/64"
BOLT, angling
2шт.
426898
NUT,Jam, 7/8"-9, G5
7/8-9 C-Z hex. jam
4шт.
20
481486R1
BLOCK
4шт.
21
461709R1
BAR, bearing standard
12шт.
Выбрано товаров: 78
