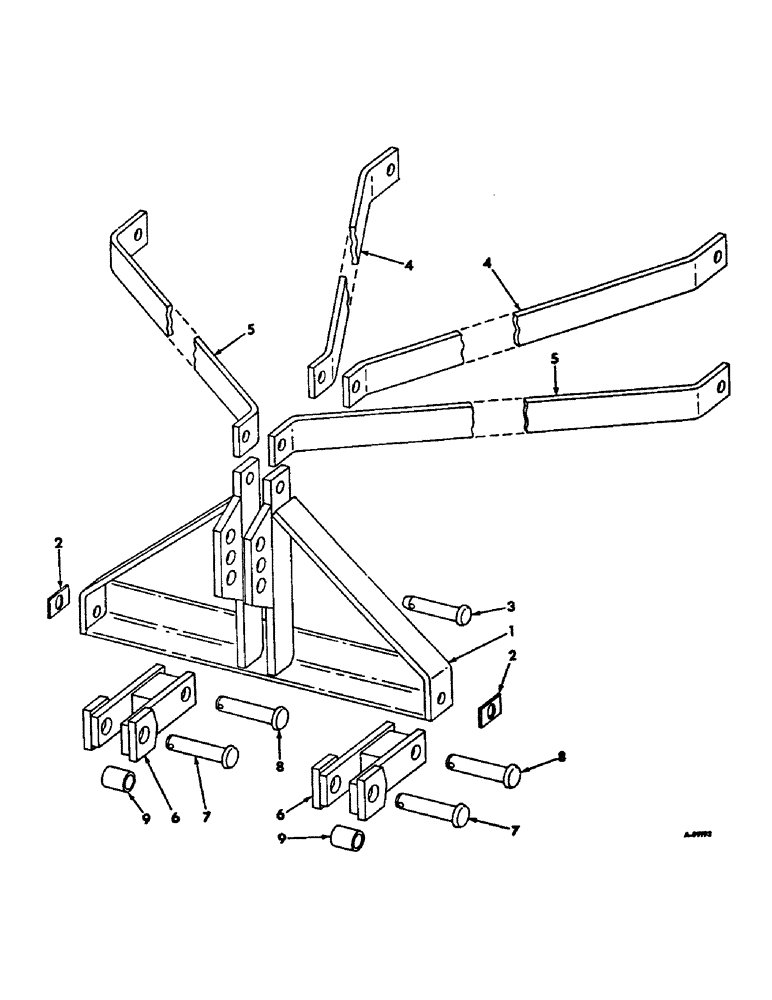

Запчасти Case IH 150 (Y-3) - HITCH

1

486819R1

HITCH ASSY, A-frame

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

473549R1

BAR

SHIM, between front frame and hitch A, frame

4шт.

3

486831R1

PIN, upper link

1шт.

373025R91

PIN ASSY.

PIN ASSY, beam coupling

1шт.

4

486824R1

BRACE, inner hitch

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

486825R1

BRACE, outer hitch

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

21525R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 8

SCREW, 3/4-10 x 4-3/4 C-Z hex-hd cap

1шт.

560471R1

WASHER, 3/4 C-Z med lock

3шт.

280954

NUT,3/4"-10, G5

3шт.

6

486826R1

LINK ASSY, lower

2шт.

7

487656R1

PIN, 1-1/5 x 4-7/8 headed lower link

2шт.

373025R91

PIN ASSY.

PIN ASSY, beam coupling

2шт.

8

665318R1

PIN, 1 x 4-7/8 lower link pivot

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

487780R1

SPACER, lower link, to adapt 150 disk harrow to the 1206 tractor w/category III three-point fast hitch

1шт.
