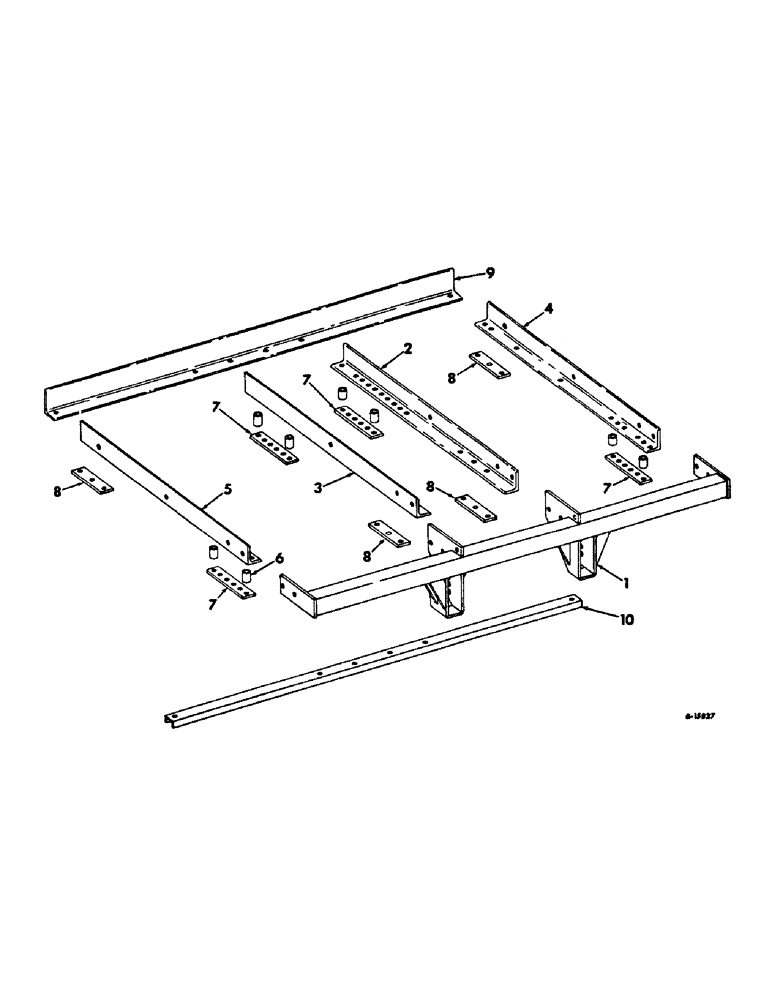

Запчасти Case IH 150 (Y-2) - MAIN FRAME

1

486805R1

FRAME ASSY, front

1шт.

2

486811R1

ANGLE, inner frame LH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 C-Z hex-hd cap

6шт.

280954

NUT,3/4"-10, G5

10шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

3

486812R1

ANGLE, inner frame RH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 C-Z hex-hd cap

6шт.

280954

NUT,3/4"-10, G5

10шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

4

486813R1

ANGLE, outer frame LH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 C-Z hex-hd cap

6шт.

280954

NUT,3/4"-10, G5

10шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

5

486814R1

ANGLE, outer frame RH

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 C-Z hex-hd cap

6шт.

280954

NUT,3/4"-10, G5

10шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

6

468521R1

SPACER

gang bar

8шт.

7

486815R1

BAR, gang adjsuting

4шт.

8

481283R1

BAR, gang bar short clamp

4шт.

9

486816R1

ANGLE, rear frame

1шт.

10

486817R1

CHANNEL, center frame

1шт.
