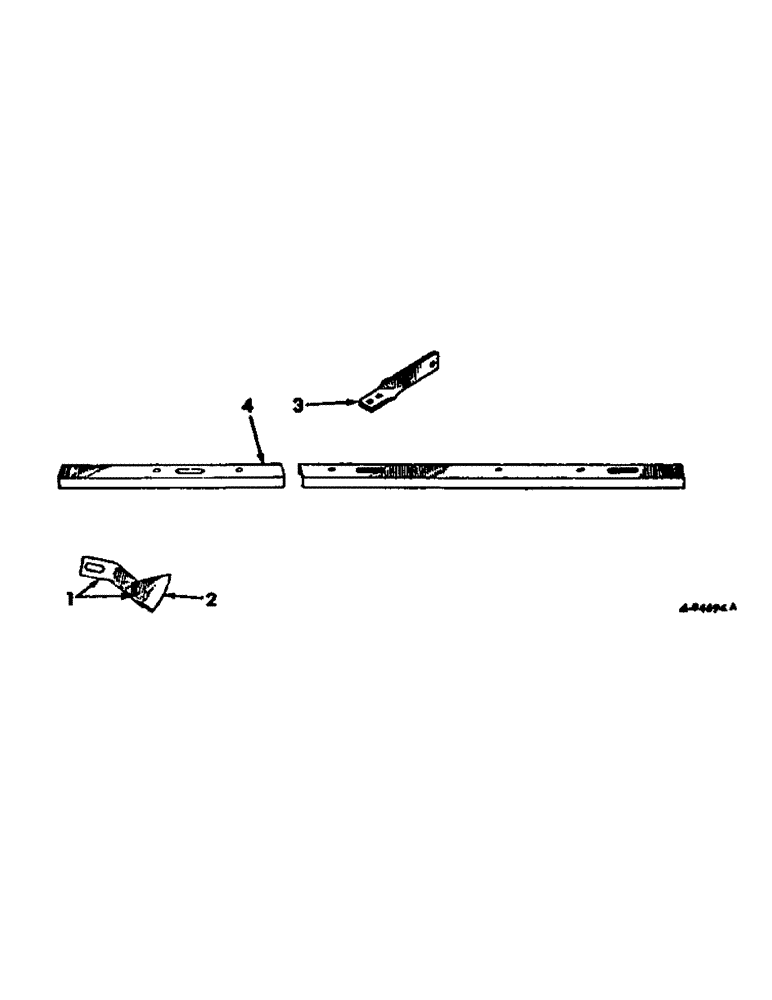

Запчасти Case IH 132 (AE-5) - SCRAPERS AND SCRAPER ANGLES

1

465060R93

SCRAPER

ASSY, LH

1шт.

1

465061R93

BLADE

SCRAPER ASSY, RH, 12 for units A & F, 11 for unit B, 10 for unit C, 14 for units D & H, 13 for unit E, 16 for unit G

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nl crg, 2 used for scraper assy

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per scraper assy 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per scraper assy 1/2"

1шт.

2

465062R1

BLADE

scraper, 1 used per scraper assy

1шт.

2

543999R1

BLADE

scraper, used only w/465060R93 and 465061R93, 1 per scraper

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd, 2 used per blade

1шт.

3

482073R1

BRACKET

scraper bar

8шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-z hex.

8шт.

4

479287R2

ANGLE

front scraper bar LH, unit A

1шт.

4

479288R2

ANGLE

front scraper bar RH, unit A

1шт.

4

479297R2

BAR

ANGLE, rear scraper bar, for units A & B

2шт.

4

479295R2

ANGLE, front scraper bar LH, for units B & C

1шт.

4

479296R2

ANGLE, front scraper bar RH, for units B & C

1шт.

4

479299R2

BAR

ANGLE, rear scraper bar LH, unit C

1шт.

4

479300R2

BAR

ANGLE, rear scraper bar RH, unit C

1шт.

4

479289R2

ANGLE

scraper LH, unit D

1шт.

4

479290R2

ANGLE

scraper RH, unit D

1шт.

4

479301R3

ANGLE

scraper, 2 for units D & E

1шт.

4

479293R3

ANGLE

scraper LH, units E & F

1шт.

4

479294R3

ANGLE, scraper RH, units E & F

1шт.

4

479291R3

ANGLE

scraper LH, unit F

1шт.

4

479292R3

ANGLE

scraper RH, unit F

1шт.

4

472561R3

BAR

ANGLE, scraper LH, unit G

1шт.

4

472562R3

BAR

ANGLE, scraper RH, unit G

1шт.

4

472570R2

BAR

ANGLE, scraper, 2 for unit G

1шт.

4

479323R2

ANGLE

scraper LH, unit H

1шт.

4

479304R3

ANGLE

scraper LH, unit H

1шт.

4

479324R2

ANGLE

scraper RH, unit H

1шт.

4

479305R3

ANGLE, scraper RH, unit H

1шт.

18496R2

BOLT, 1/2 x 1-1/2 C-z hex-hd mach

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.
