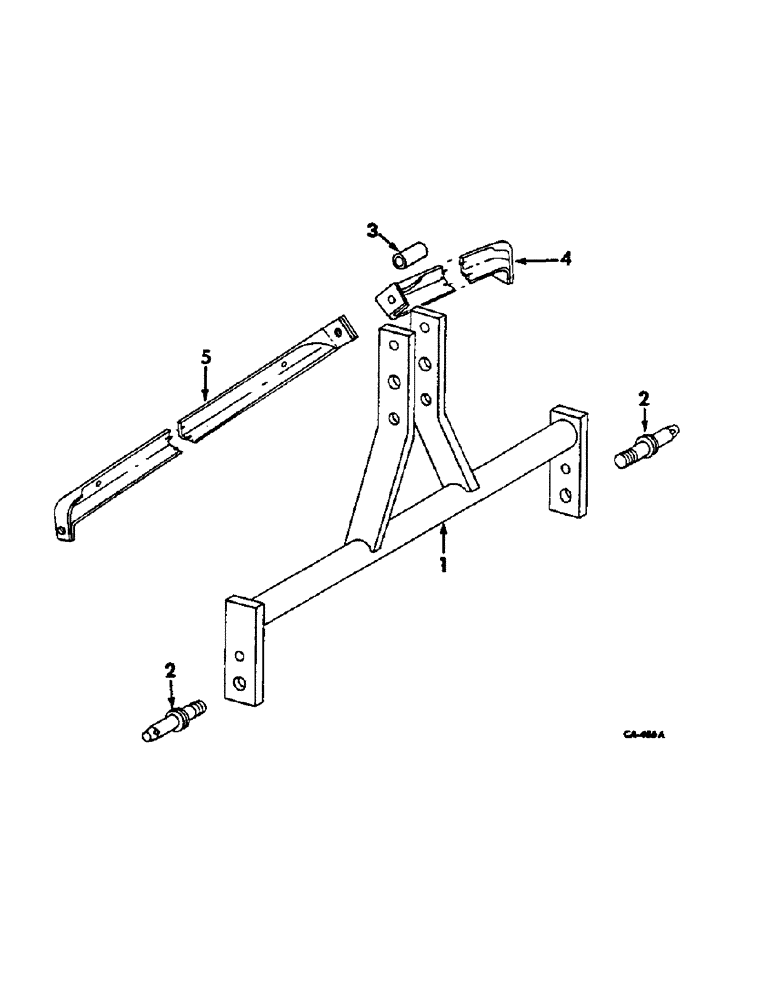

Запчасти Case IH 132 (AE-4) - THREE POINT HITCH CATEGORY II

1

492345R1

SUPPORT ASSY, 3-point

1шт.

2

472790R2

STUD

PIN, lower link

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8 C-Z hex.

2шт.

3

462425R1

SPACER

mast

1шт.

4

541578R1

BRACE, mast LH, for units A, B & C

1шт.

4

492349R1

BRACE, mast LH, for units D through H

1шт.

5

541579R1

BRACE, mast RH, for units A, B & C

1шт.

5

492348R1

BRACE, mast RH, for units D through H

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

21385R1

BOLT,3/4" x 5 1/2", Gr 8

SCREW, 3/4-10 x 5-1/2 znd hex-hd cap type 4

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.
