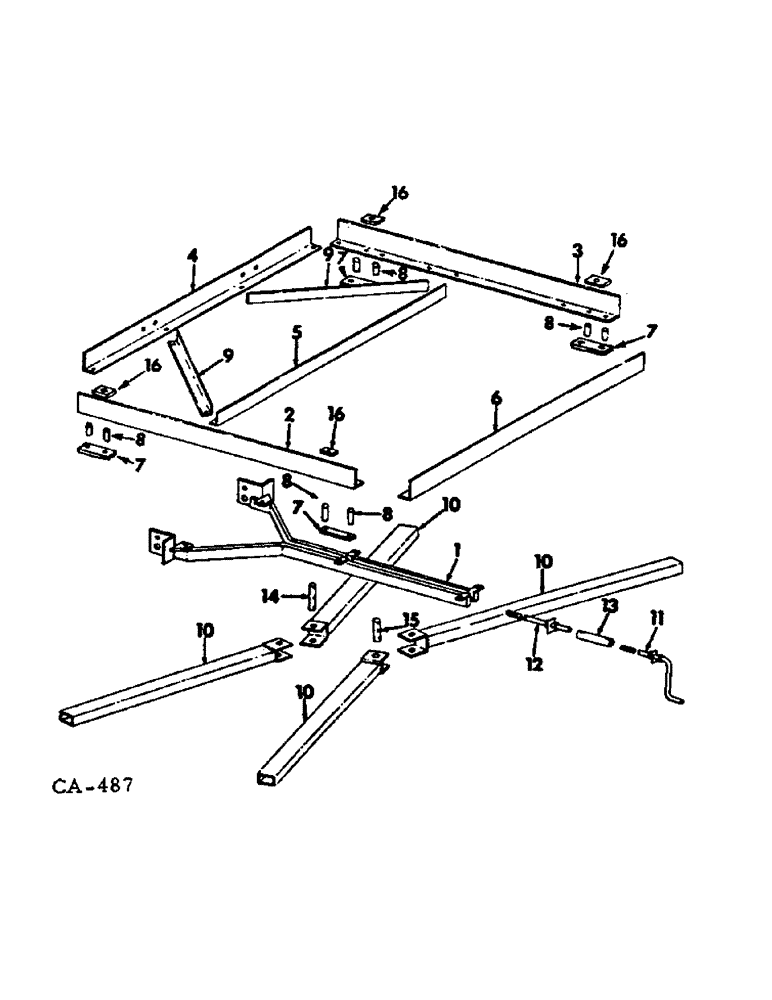

Запчасти Case IH 132 (AE-2) - FRONT AND REAR FRAMES AND REAR

1

492327R1

FRAME ASSY, center, for units D through H

1шт.

1

541569R1

FRAME ASSY, center, for units A, B, & C

1шт.

2

492331R1

ANGLE, side frame LH, for units D through H

1шт.

2

541571R1

ANGLE, side frame LH, for units A, B & C

1шт.

3

492332R1

ANGLE, side frame RH, for units D through H

1шт.

3

541572R1

ANGLE, side frame RH, for units A B & C

1шт.

4

492333R1

ANGLE, FRT frame, for units D through H

1шт.

4

541573R1

ANGLE, front frame, for units A, B & C

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

5

492831R1

ANGLE, center frame, for units D through H

1шт.

5

541574R1

ANGLE, center frame, for units A, B & C

1шт.

6

492334R1

ANGLE, rear frame, for units D through H

1шт.

6

541575R1

ANGLE, rear frame, for units A B & C

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-z hex.

8шт.

7

492290R1

STRAP

gang bar

4шт.

8

659932R1

BUSHING

SPACER, pipe

8шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 and hex-hd cap, 6 for units A through F, 2 for units G & H

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd cap

2шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 znd hex-hd cap, 4 for units units G & H

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

9

492335R1

BRACE, lower, for units D through H

2шт.

9

541576R1

BRACE, lower, for units A, B & C

1шт.

10

492338R1

TUBE ASSY, gang bar

2шт.

10

474328R91

TUBE ASSY, gang bar, for units A through F

2шт.

10

492336R1

TUBE ASSY, gang bar, for units G & H

2шт.

11

492340R1

CRANK ASSY, gang adjusting, for units D through H

1шт.

11

541577R1

CRANK ASSY, gang adjusting, for units A, B & C

1шт.

12

492342R1

SCREW ASSY, gang adjusting

1шт.

13

474316R1

COUPLING, screw

1шт.

14

474304R1

SWIVEL, gang bar LH

1шт.

15

474305R1

BAR

SWIVEL, gang bar RH

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

13169R1

PIN, 1/4 x 2-1/4 self-opening cot.

4шт.

16

492344R1

BAR, reinforcing, 4 for units G & H

1шт.
