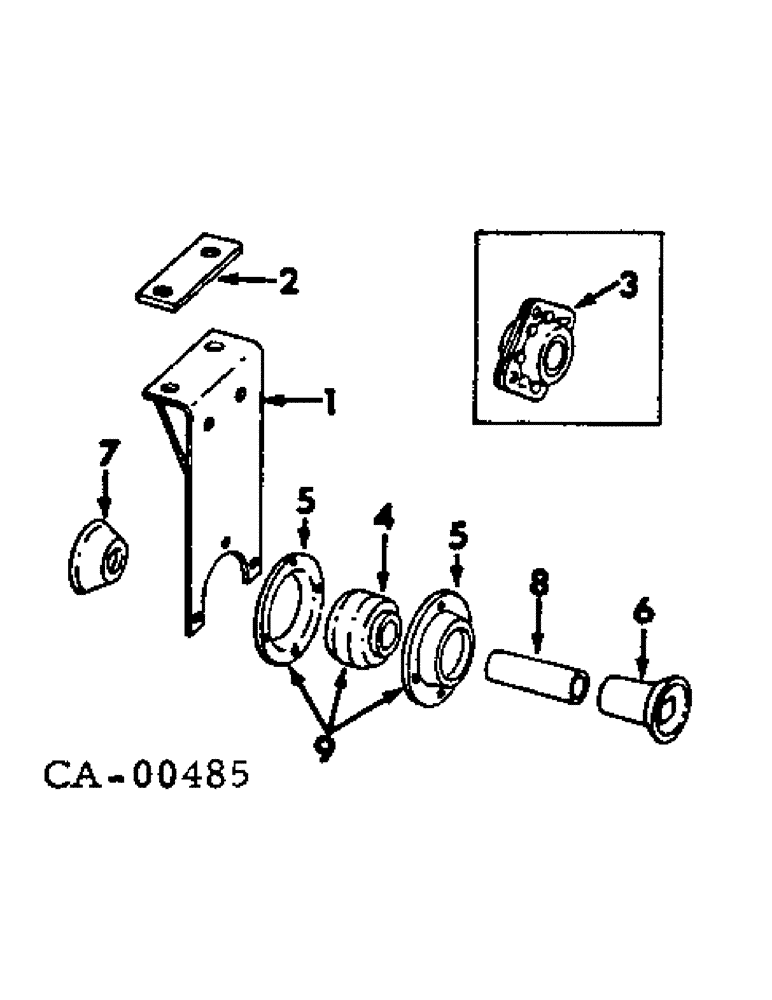

Запчасти Case IH 132 (AE-9) - THIRD BEARING ATTACHMENT, PRODUCT GRAPHICS

1

485752R1

SUPPORT ASSY.

STANDARD ASSY, brg

2шт.

2

479021R1

BAR

brg std

2шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

3

ST491A

BALL BEARING,45mm ID

BEARING W/LUBRICATION FITTING, ball, optional w/ref. no. 9

2шт.

3

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

2шт.

4

ST607A

BALL BEARING,44.82mm ID x 85mm OD x 41.33mm W

BEARING,. std ball

2шт.

5

652386R1

FLANGE

bearing mounting

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znk sq-nk crg

2шт.

441485R1

BOLT,Shoulder, Hex, 3/8" - 16 x 1 1/2"

3/8-16 step to 1/2 shank

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

6

472591R3

BUSHING,1.796" ID x 2.4" OD x 4.052"

brg

2шт.

7

472593R3

SPOOL

brg, unit G

2шт.

7

472592R3

SPOOL

brg, unit G

2шт.

8

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support

2шт.

9

BEARING ASSY, ball, optional w/ST491A, consists of (2) flange 652386R1, (1) bearing ST607A

1шт.

547494R92

DECAL

PACKAGE, IH trademark product graphics

2шт.

547495R92

DECAL KIT

PACKAGE, International product graphics

1шт.

547497R92

DECAL

PACKAGE, model designation product graphics

1шт.

624957R1

DECAL

TAPE, reflective, red

2шт.

487166R1

TAPE

reflective, amber

1шт.
