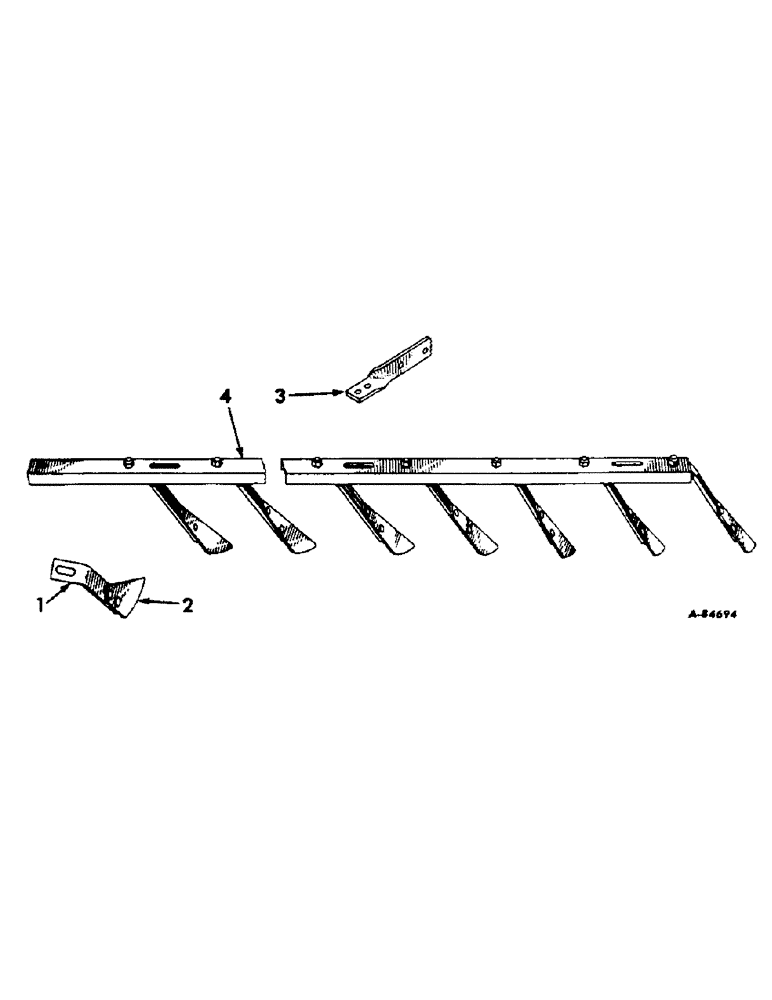

Запчасти Case IH 130 (T-5) - SCRAPERS AND SCRAPER ANGLES

1

465060R92

SCRAPER

ASSY, LH

1шт.

1

465061R92

SCRAPER

ASSY, RH, 8 for unit B, 9 for unit C, 10 for units A & E, 11 for unit F, 12 for units D & H, 13 for unit J, 14 for unit G

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg, 2 used per scraper assy

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 used per scraper assy 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per scraper assy 1/2"

1шт.

2

465062R1

BLADE

scraper, one used per scraper assy

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd, 2 used per blade

1шт.

3

482073R1

BRACKET

scraper bar

8шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 C-Z sq-nk crg

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

474426R2

ANGLE

front scraper bar LH, units B & C

1шт.

4

474427R2

ANGLE

front scraper bar RH, unit B & C

1шт.

4

468560R2

BAR

ANGLE, rear scraper bar, 2 for unit B & C

1шт.

4

471009R2

ANGLE

front scraper bar LH, unit A

1шт.

4

471010R2

ANGLE

front scraper bar RH, unit A

1шт.

4

474428R2

ANGLE

rear scraper bar LH, unit B

1шт.

4

474429R2

ANGLE

rear scraper bar RH, unit B

1шт.

4

479287R2

ANGLE

front scraper bar LH, unit D

1шт.

4

479288R2

ANGLE

front scraper bar RH, unit D

1шт.

4

479297R2

BAR

ANGLE, rear scraper bar, 2 for units D & F

1шт.

4

479295R2

ANGLE, front scraper bar LH, units E & F

1шт.

4

479296R2

ANGLE, front scraper bar RH, units E & F

1шт.

4

479299R2

BAR

ANGLE, rear scraper bar LH, unit E

1шт.

4

479300R2

BAR

ANGLE, rear scraper bar RH, unit E

1шт.

4

479289R2

ANGLE

front scraper bar LH, unit G

1шт.

4

479290R2

ANGLE

front scraper bar RH, unit G

1шт.

4

479301R2

BAR

ANGLE, rear scraper bar, 2 for unit G

1шт.

4

479293R2

ANGLE

front scraper bar LH, unit H

1шт.

4

479294R2

ANGLE, front scraper bar RH, unit H

1шт.

4

479291R2

ANGLE

rear scraper bar LH, front H

1шт.

4

479292R2

ANGLE

rear scraper bar RH, unit H

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.
