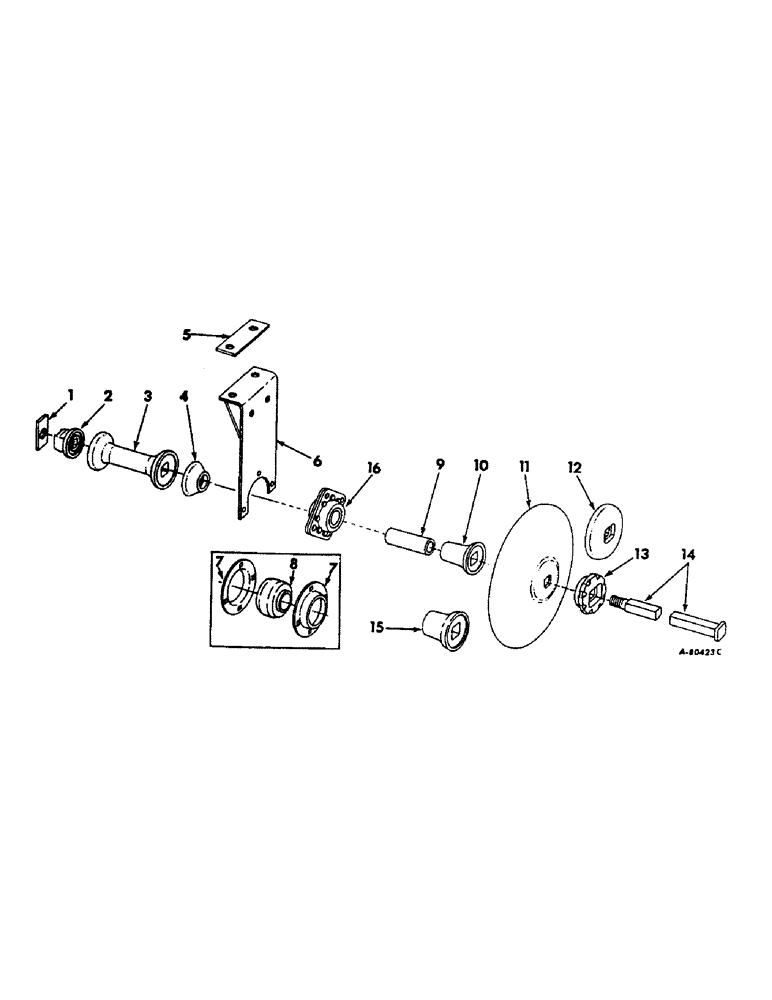

Запчасти Case IH 130 (T-4) - DISK GANGS

1

P34101

LOCK

arbor bolt nut

4шт.

220094

NUT,1 1/8"-7, G5

1-1/8-7 C-Z hex.

4шт.

2

PA4167

WASHER

arbor bolt nut

4шт.

3

481416R1

SPOOL

spacing, 6 for unit C, 8 for unit F, 10 for unit J, 12 for unit A, 16 for unit B, 20 for unit G

1шт.

3

481417R1

SPOOL

spacing, 4 for unit C, 6 for unit F, 8 for units B & J, 12 for unit E, 16 for unit H

1шт.

4

472592R2

SPOOL

bearing, 4 for unit C, F & J, 8 for units A, D & G

1шт.

5

479021R1

BAR

brg standard

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

15шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap

15шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

15шт.

6

485752R1

SUPPORT ASSY.

STANDARD ASSY, anti-friction brg

8шт.

7

652386R1

FLANGE

MOUNTING, brg, 1966 only

16шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 C-Z sq-nk crg

8шт.

441485R1

BOLT,Shoulder, Hex, 3/8" - 16 x 1 1/2"

3/8-16 step to 1/2 shank 1-1/2 zn-pltd

24шт.

120377

NUT,3/8" - 16, Gr 5

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

8

BEARING, standard ball, 1966 only, order bearing assy, ST490

8шт.

9

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, 4 for units C, F, & J, 8 for units A, D & G

1шт.

9

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, 4 for units C, F & J, 8 for units B, E & H

1шт.

10

472591R2

SPOOL

bearing

8шт.

11

140561/2

DISC

BLADE, 18 in. x 10 ga solid disk

1шт.

11

143811/2

DISC

BLADE, 20 in. x 9 ga solid disk

1шт.

11

143521/2

NOTCHED DISK

BLADE, 18 in. x 10 ga notched disk

1шт.

11

PA13373

DISC

BLADE, 22 in. x 6 ga solid disk

1шт.

11

474254R1

BLADE

20 in. x 10 ga notched disk

1шт.

11

143531/2

NOTCHED DISK

BLADE, 20 in. x 9 ga notched disk

1шт.

11

474253R1

DISC

BLADE, 18 in. x 11 ga notched disk

1шт.

11

472219R1

DISC

BLADE, 22 in. x 7 ga notched disk

1шт.

11

474255R1

DISC

BLADE, 22 in. x 9 ga notched disk, 20 for unit B, 22 for unit C, 24 for unit A & E, 26 for unit F, 28 for units D & H, 30 for unit J, 32 for unit G

1шт.

12

474352R3

SQ HOLE WASHER

bumper

2шт.

13

466950R2

WASHER

arbor

2шт.

14

468608R1

BOLT,1 1/8"-7 x 41.3"

arbor, 4 for unit A, 2 for unit C

1шт.

14

471014R1

BOLT,1 1/8"-7 x 48.8"

arbor, 4 for unit D, E & F

1шт.

14

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor, 4 for unit B, 2 for unit C

1шт.

14

471013R1

BOLT,1 1/8"-7 x 56.3"

arbor, 4 for unit G, 2 for unit J

1шт.

14

471015R1

BOLT,1 1/8"-7 x 57.8"

arbor, 4 for unit H, 2 for unit J

1шт.

15

472593R2

SPOOL

bearing, 4 for units C, F & J, & for units B, E & H

1шт.

16

ST490

BEARING

ASSY, pre-lubricated ball, 1967 and since

8шт.
