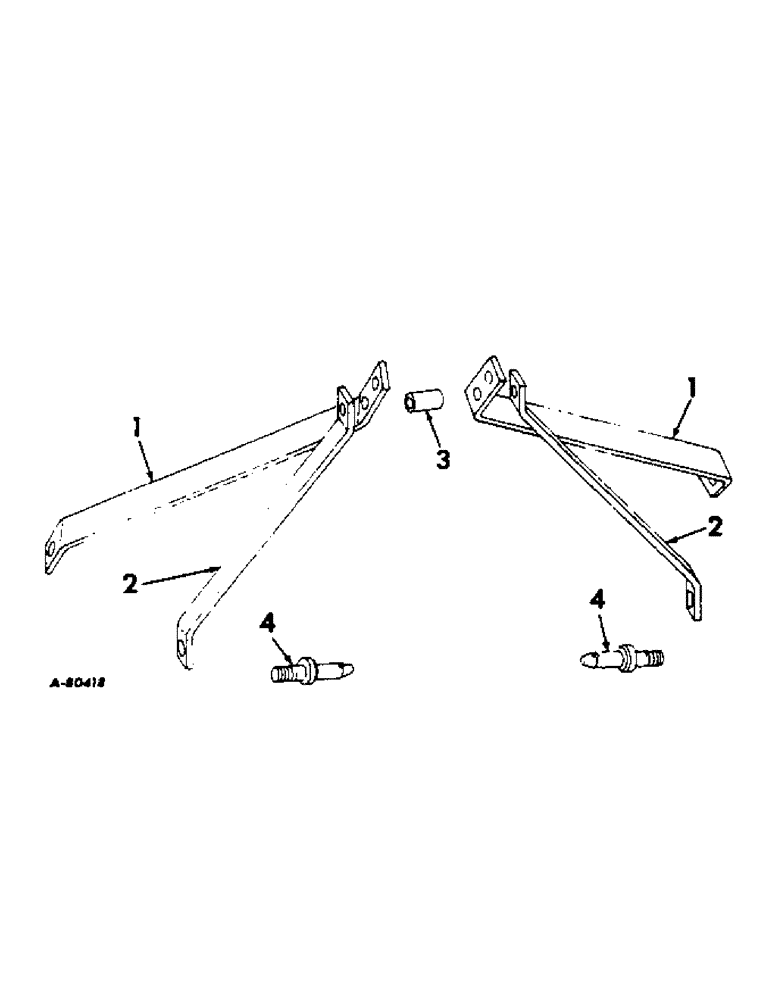

Запчасти Case IH 130 (T-3) - THREE POINT HITCH COMPLETING PACKAGE

1

474376R1

BAR, mast LH

1шт.

1

474377R1

BAR, mast RH

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

280954

NUT,3/4"-10, G5

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

2шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

474375R1

SUPPORT, mast

2шт.

3

462425R1

SPACER

mast, mast brace left & right to mast bar

1шт.

4

525896R1

STUD

PIN, lower link, for 7-1/2 and 9 in. spacing

1шт.

426767

NUT,7/8"-14, G5

7/8-14 cd oor zn-plted hex.

2шт.

131047

WASHER,7/8"

7/8"

2шт.

4

484974R1

PIN, lower link category I, for 10 in. spacing

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 C-Z hex.

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

2шт.
