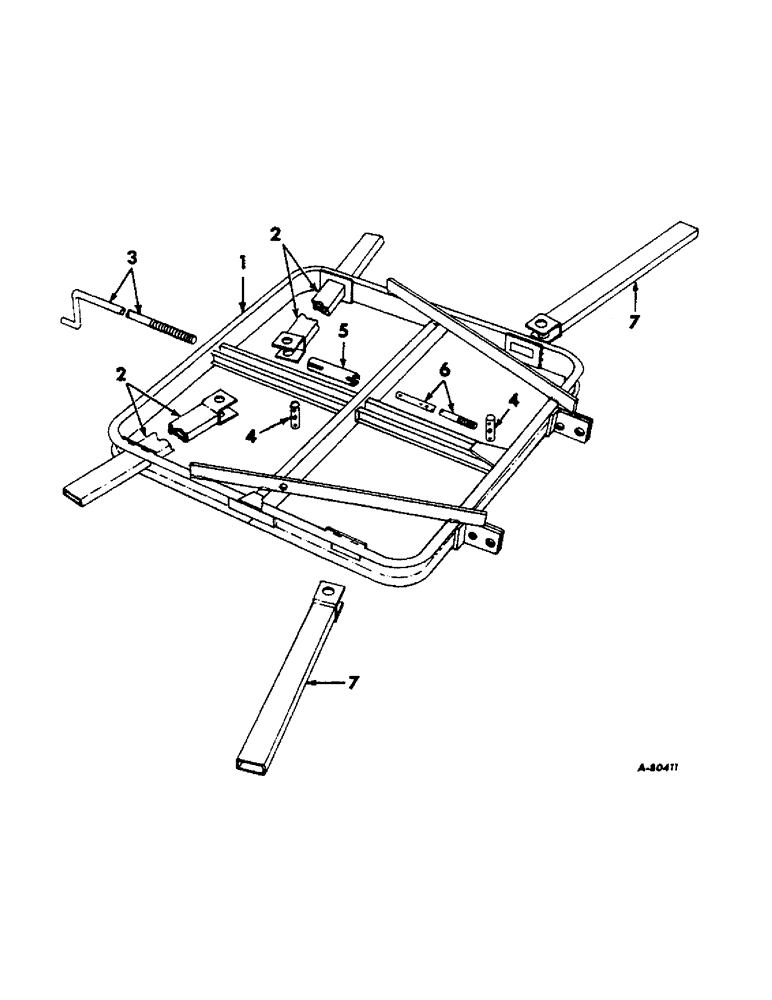

Запчасти Case IH 130 (T-2) - FRAME AND GANG BAR TUBES

1

474306R92

FRAME ASSY, units A thru F

1шт.

1

484970R1

FRAME ASSY, units G thru J

1шт.

2

474328R91

TUBE ASSY, gang bar

2шт.

3

474314R1

CRANK, adjusting

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

ESNA 1/4" x 1 1/4", Slotted

6шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga C-Z

4шт.

4

474304R1

SWIVEL, gang LH

1шт.

4

474305R1

BAR

SWIVEL, gang bar RH

1шт.

13169R1

PIN, 1/4 x 2-1/4 self-opening cot.

4шт.

5

474316R1

COUPLING, screw

1шт.

6

474315R1

SCREW, adjusting

1шт.

7

474326R91

TUBE

ASSY, front gang bar, 2 for units A thru F

1шт.

7

484972R1

TUBE ASSY, front gang bar, 2 for units G thru J

1шт.
