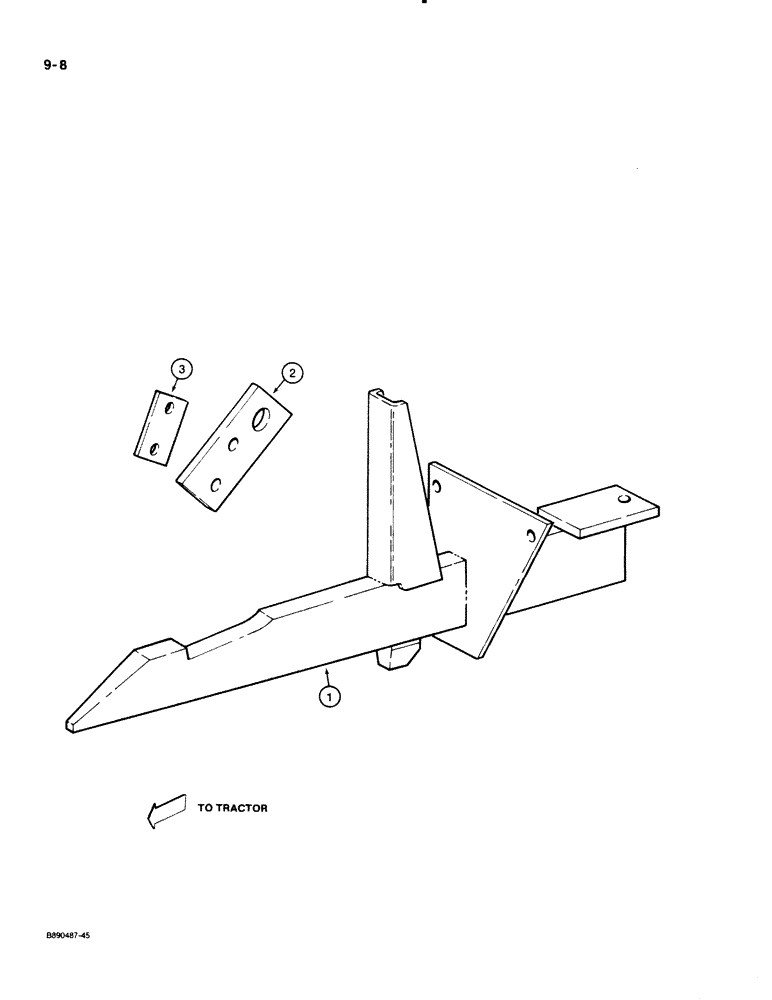

Запчасти Case IH 122 (9-08) - ONE-POINT FAST HITCH DISK HARROW CODED A, B, C, OR D (09) - CHASSIS/ATTACHMENTS

1

492324R1

BEAM

- coupling

1шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

425-1010

NUT,5/8"-11, G5

5шт.

2

493854R1

BAR

- arm extension

1шт.

3

474368R1

BAR

- extension retaining

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.
