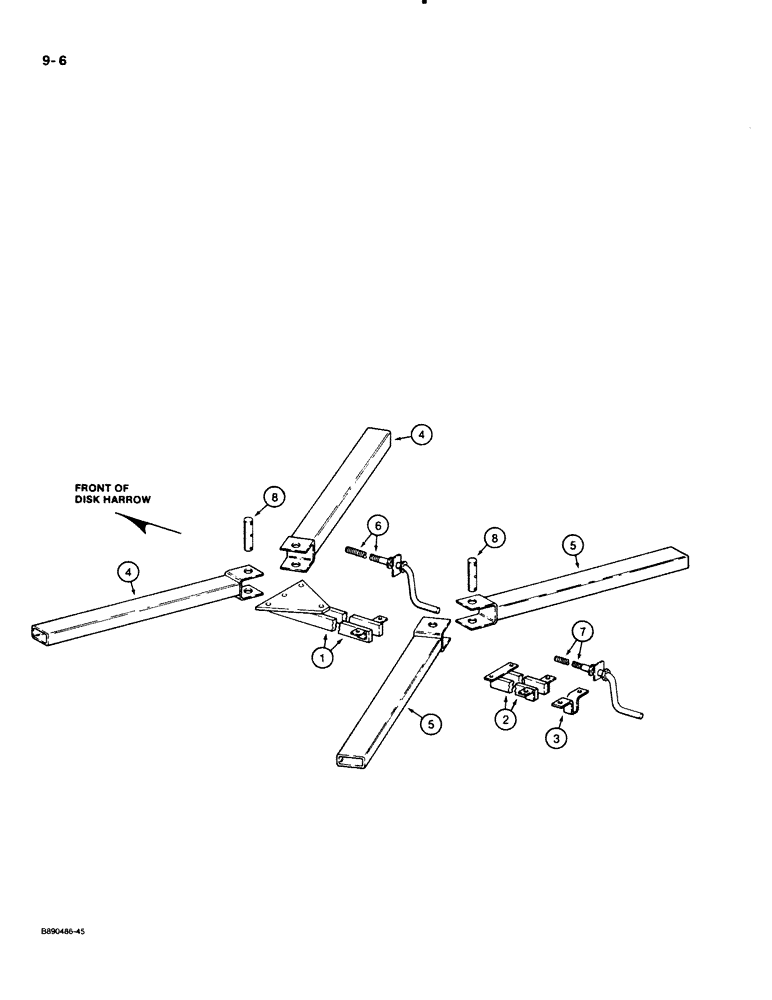

Запчасти Case IH 122 (9-06) - GANG BAR TUBES (09) - CHASSIS/ATTACHMENTS

1

492302R1

BAR

- front frame (Disk Harrow coded A through F)

1шт.

1

492272R1

FRAME

- center (Disk Harrow coded G through M)

1шт.

2

492309R1

BAR

- rear frame (Disk Harrow coded C, D, E or F)

1шт.

2

492282R1

BAR

- rear frame (Disk Harrow coded G through M)

1шт.

3

492277R1

SUPPORT

- crank (Disk Harrow coded A, B, G through M)

1шт.

(Disk Harrow coded C, D, E or F)

2шт.

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

(Disk Harrow coded A, B, C through M) Hex, 5/8"-11 x 1 3/4", G5

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Disk Harrow coded G through M) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2-4шт.

129-107

NUT,5/8"-11, G5

2-4шт.

4

474317R92

TUBE

- gang bar, front (Disk Harrow coded A, B, C or D)

2шт.

4

492316R1

TRUSS ROD

TUBE - gang bar, front (Disk Harrow coded E or F)

2шт.

4

474322R92

TUBE

- gang bar, front (Disk Harrow coded J or M)

2шт.

4

492296R1

TUBE

- gang bar, front (Disk Harrow coded G, H, K or L)

2шт.

5

474320R92

TUBE

- gang bar, rear (Disk Harrow coded C or D)

2шт.

5

474322R92

TUBE

- gang bar, rear (Disk Harrow coded E or F)

2шт.

5

474326R91

TUBE

- gang bar, rear (Disk Harrow coded G through M)

2шт.

6

492291R1

CRANK

- gang adjustment, front

1шт.

7

492314R1

TRUSS ROD

CRANK - gang adjustment, rear (Disk Harrow coded C, D, E or F)

1шт.

7

492294R1

CRANK

- gang adjustment, rear (Disk Harrow coded G through M)

1шт.

8

474305R1

BAR

PIN - gang bar (Disk Harrow coded A or B)

1шт.

(Disk Harrow coded C through M)

2шт.

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2-4шт.
