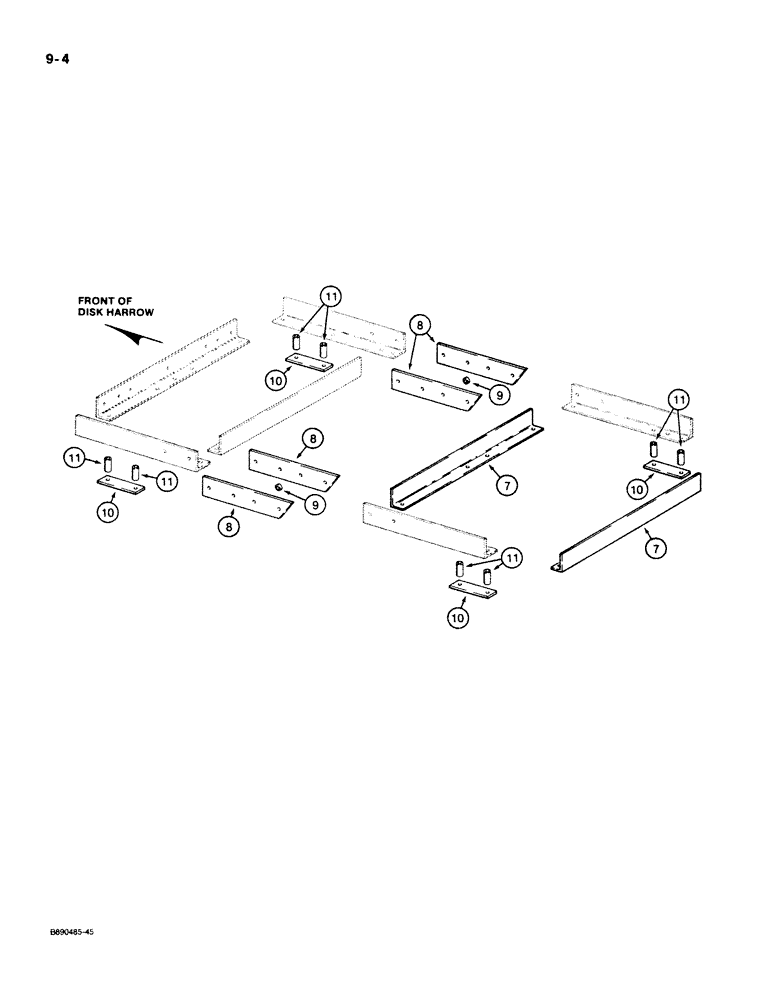

Запчасти Case IH 122 (9-04) - FRONT AND REAR FRAMES (09) - CHASSIS/ATTACHMENTS

7

492313R1

ANGLE

- rear frame (Disk Harrow coded C, D, E or F)

2шт.

7

492289R1

ANGLE

- rear frame (Disk Harrow coded G through M)

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

(Disk Harrow coded G through M) 5/8"-11, G5

4шт.

8

541557R1

BAR

- hinge (Disk Harrow coded C, D, E or F)

4шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

425-1010

NUT,5/8"-11, G5

10шт.

8

492288R1

BAR

- hinge (Disk Harrow coded G through M)

4шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

8шт.

9

492389R1

SPACER

- bar (Disk Harrow coded C through M)

2шт.

10

492290R1

STRAP

- gang bar (Disk Harrow coded A or B)

2шт.

(Disk Harrow coded C through M)

4шт.

11

659932R1

BUSHING

- standard (Disk Harrow coded A or B)

4шт.

(Disk Harrow coded C through M)

8шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch (Disk Harrow coded A or B)

4шт.

(Disk Harrow coded C through M)

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Disk Harrow coded A or B) 5/8"

4шт.

(Disk Harrow coded C through M)

8шт.

425-1010

NUT,5/8"-11, G5

(Disk Harrow coded A or B) 5/8"-11, G5

4шт.

(Disk Harrow coded C through M)

8шт.
