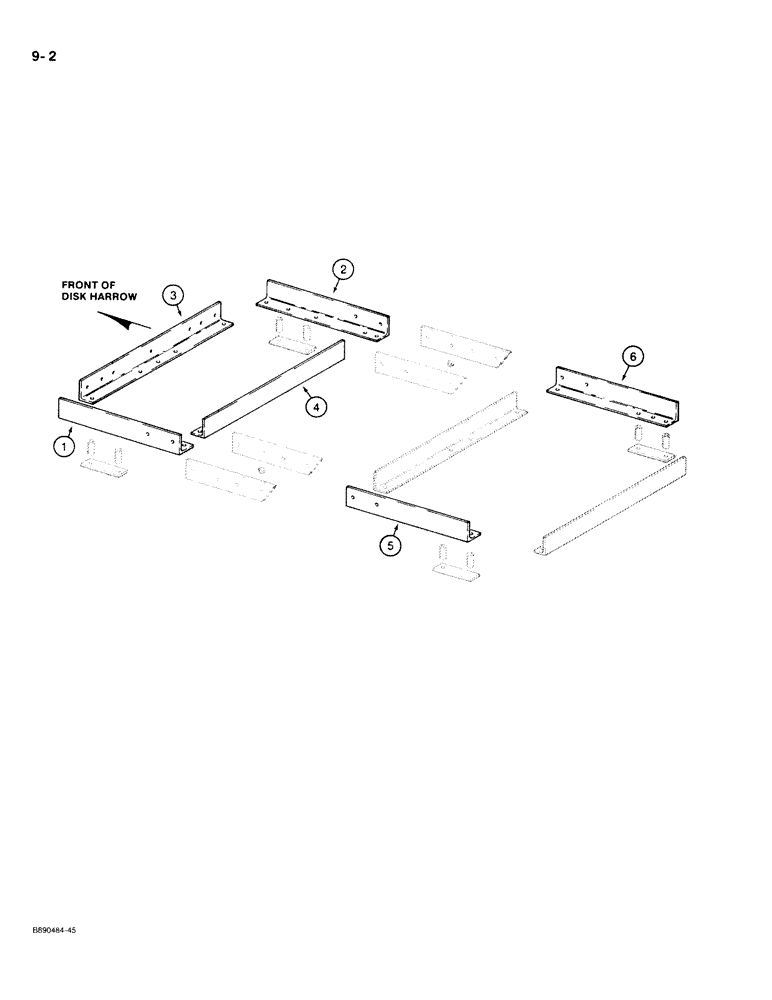

Запчасти Case IH 122 (9-02) - FRONT AND REAR FRAMES (09) - CHASSIS/ATTACHMENTS

1

492305R1

ANGLE

- front frame, outer, left-hand (Disk Harrow coded A through F)

1шт.

1

492278R1

ANGLE

- front frame, outer, left-hand (Disk Harrow coded G through M)

1шт.

2

492306R1

ANGLE

- front frame, outer, right-hand (Disk Harrow coded A through F)

1шт.

2

492279R1

ANGLE

- front frame, outer, right-hand (Disk Harrow coded G through M)

1шт.

3

492307R1

ANGLE

- front frame, front (Disk Harrow coded A through F)

1шт.

3

492280R1

ANGLE

- front frame, front (Disk Harrow coded G through M)

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

4

492308R1

ANGLE

- front frame, rear (Disk Harrow coded A through F)

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

7шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

425-1010

NUT,5/8"-11, G5

7шт.

4

492281R1

ANGLE

- front frame, rear (Disk Harrow coded G through M)

1шт.

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

5

492311R1

ANGLE

- rear frame, outer, left-hand (Disk Harrow coded C, D, E or F)

1шт.

5

492286R1

ANGLE

- rear frame, outer, left-hand (Disk Harow coded G through M)

1шт.

6

492312R1

ANGLE

- rear frame, outer, right-hand (Disk Harrow coded C, D, E or F)

1шт.

6

492287R1

ANGLE

- rear frame, outer, right-hand (Disk Harrow coded G through M)

1шт.
