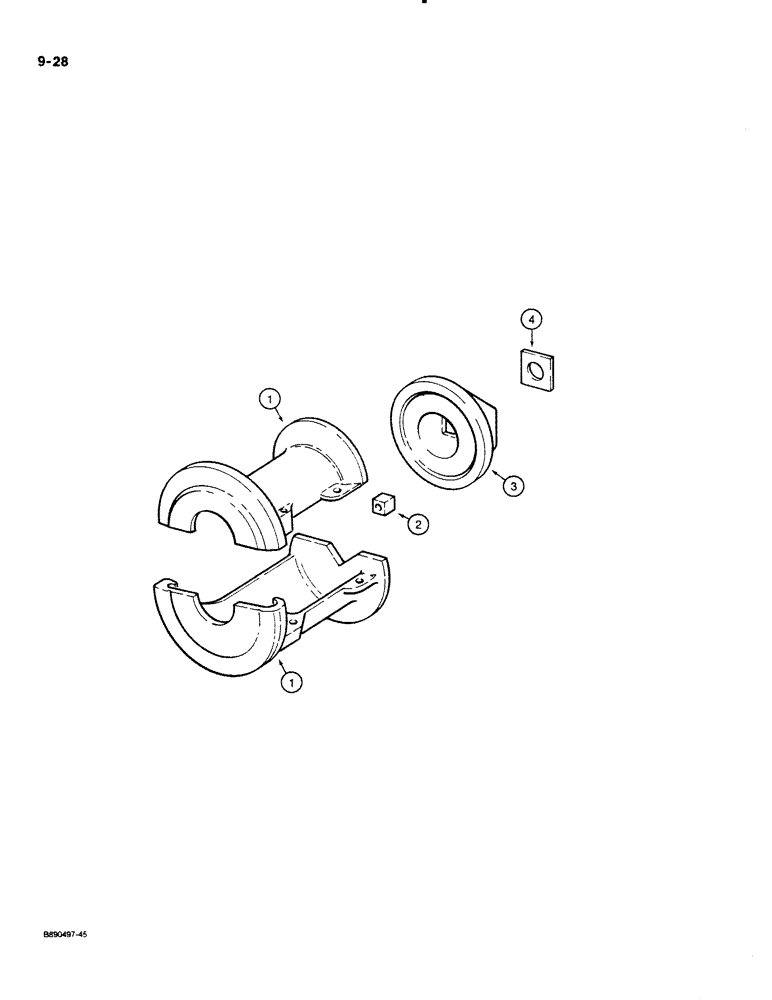

Запчасти Case IH 122 (9-28) - FURROW FILLER SPOOL WITH ROUND CENTER HOLE DISK HARROWS CODED E THROUGH M (09) - CHASSIS/ATTACHMENTS

1

100693C1

SPOOL

- furrow filler, 7-1/2 inch long, if used

4шт.

1

129797C1

HUB

SPOOL - furrow filler, 9-1/4 inch long, if used

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

2

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

2шт.

3

P4165A

WASHER

- arbor bolt head

4шт.

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

2шт.

192-29

LOCK WASHER,7/8"

7/8"

2шт.

129-109

NUT,7/8"-9, G5

2шт.

4

100695C1

SPACER

- arbor bolt head washer

2шт.
