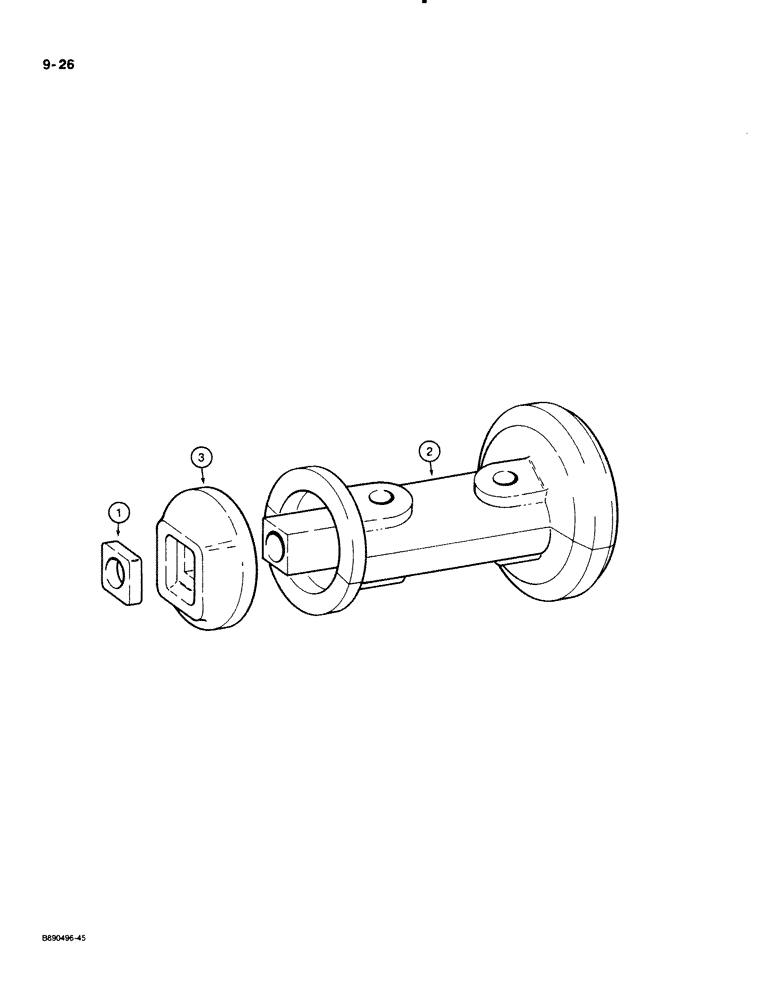

Запчасти Case IH 122 (9-26) - FURROW FILLERSPOOL WITH SQUARE CENTER HOLE SPOOL WITH SQUARE CENTER HOLE (09) - CHASSIS/ATTACHMENTS

1

466986R1

BLOCK

SPACER - arbor bolt head washer

2шт.

2

482970R2

SPOOL

- furrow filler

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

- hex, 1/2 NC x 3-1/4 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

3

P4165A

WASHER

- arbor bolt head

2шт.
