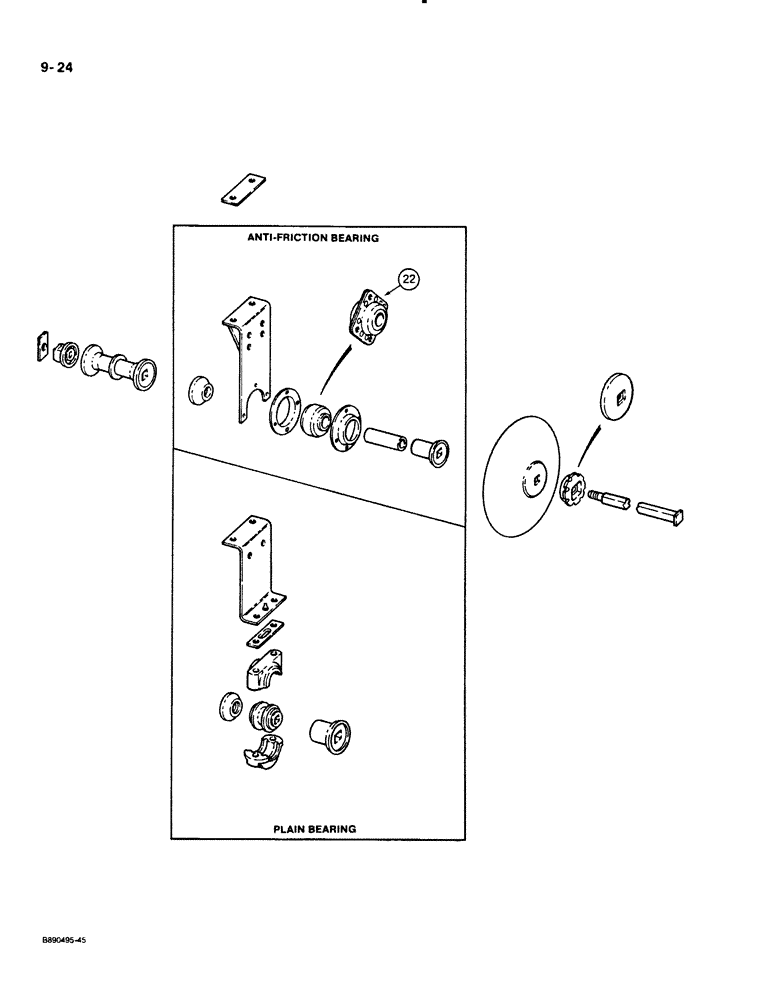

Запчасти Case IH 122 (9-24) - DISK GANGS WITH PLAIN AND ANTI-FRICTION BEARINGS (09) - CHASSIS/ATTACHMENTS

22

ST491A

BALL BEARING,45mm ID

BEARING - ball, standard, anti-friction (One used at each standard) Replaces 2 flanges (item 7) and 1 bearing (item 8)

1шт.

22

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(3 used at each bearing) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (3 used at each bearing) 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (3 used at each bearing) 1/2"-13, G5

1шт.
