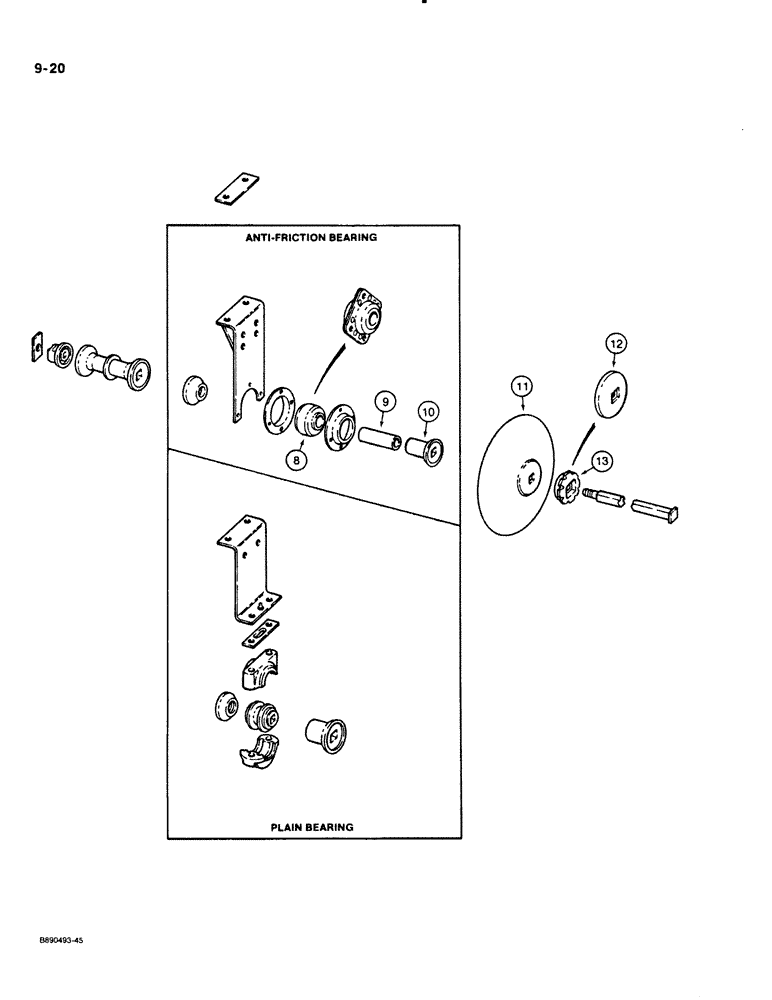

Запчасти Case IH 122 (9-20) - DISK GANGS WITH PLAIN AND ANTI-FRICTION BEARINGS (09) - CHASSIS/ATTACHMENTS

8

ST659

BEARING

- ball, standard, replaced by ST491A (item 22)

8шт.

9

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

- support, 7-1/2 inch spacing (Used with spool with square center hole)

1шт.

Ref# 9a-652383r1 is should read 5.06" LONG and has o.d. od 1.75" CAM (db) 5-11-99

1шт.

9

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing (Used with spool with round center hole) (Disk Harrow coded B, F or M)

4шт.

(Disk Harrow coded D, G or K)

8шт.

9

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

- support, 9 inch spacing (Used with spool with square center hole)

1шт.

9

112410C1

TUBE

BUSHING - support, 9 inch spacing (Used with spool with round center hole) (Disk Harrow coded F or M)

4шт.

(Disk Harrow coded E or J)

8шт.

10

472591R3

BUSHING,1.796" ID x 2.4" OD x 4.052"

- bearing, 4 inch long (With square center hole)

1шт.

10

101191C1

SPOOL

- bearing, 4 inch long (With round center hole) (Disk Harrow coded B)

4шт.

(Disk Harrow coded D, E, F, G, J, K or M)

8шт.

11

31021R1

DISC

DISK - solid, with square hole 18 inch (457 mm) diameter x 0.138 inch (3.5 mm) thick

1шт.

11

31023R1

DISC

DISK - notched, with square hole 18 inch (457 mm) diameter x 0.138 inch (3.5 mm) thick (Replaces 474253R1)

1шт.

11

31025R1

DISC

DISK - solid, with square hole 20 inch (508 mm) diameter x 0.138 inch (3.5 mm) thick

1шт.

11

31024R1

DISC

DISK - notched, with square hole 20 inch (508 mm) diameter x 0.138 inch (3.5 mm) thick

1шт.

11

472217R1

DISK HARROW

DISK - solid, with square hole

1шт.

20 inch (508 mm) diameter x 0.157 inch (4 mm) thick (Disk Harrow coded A or B)

8шт.

(Disk Harrow coded C, D or E)

16шт.

(Disk Harrow coded F)

18шт.

(Disk Harrow coded G, H or J)

20шт.

(Disk Harrow coded K or L)

24шт.

(Disk Harrow coded M)

22шт.

12

474352R3

SQ HOLE WASHER

- bumper, front gang

2шт.

13

466950R2

WASHER

- furrow filler, rear gang

2шт.

(Disk Harrow coded E through M)

2шт.

13

100696C1

WASHER

- furrow filler, rear gang

2шт.

(Disk Harrow coded E, F, G, J, K or M)

2шт.

13

P4165A

WASHER

- arbor bolt, rear gang

2шт.

(Disk Harrow coded B, C or D)

2шт.
