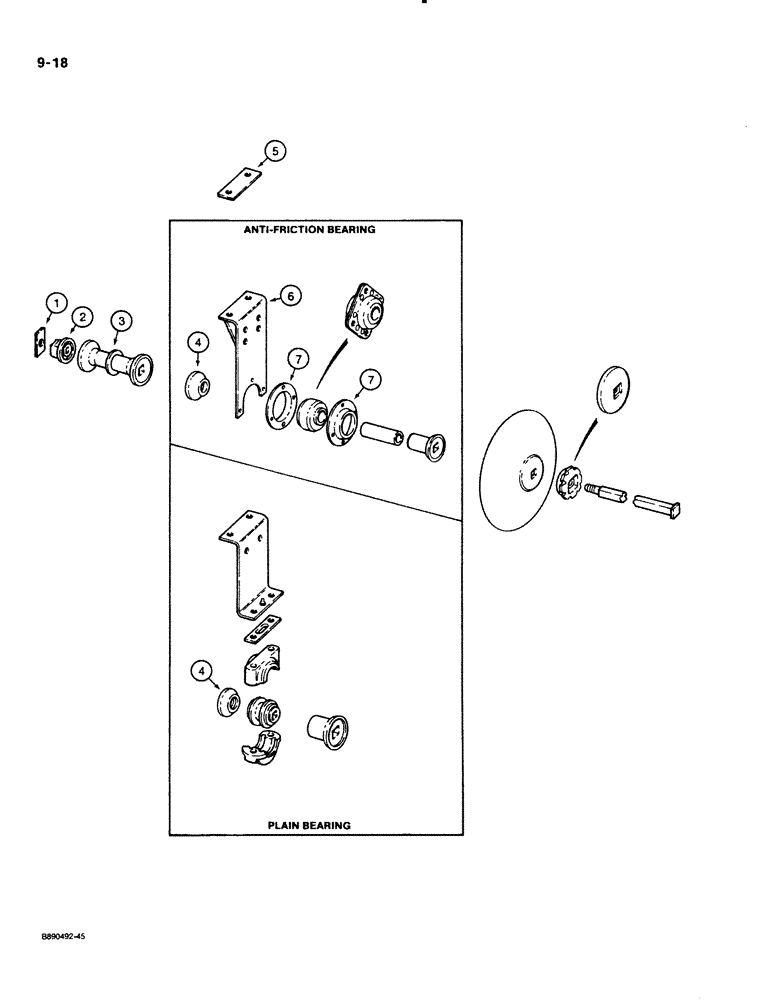

Запчасти Case IH 122 (9-18) - DISK GANGS WITH PLAIN AND ANTI-FRICTION BEARINGS (09) - CHASSIS/ATTACHMENTS

1

489292R1

SUPPORT ASSY.

STRIP - locking, arbor bolt (Replaces P34101) (Disk Harrow coded A or B)

2шт.

(Disk Harrow coded C through M)

4шт.

2

PA4167

WASHER

- arbor bolt (Disk Harrow coded A or B)

2шт.

(Disk Harrows coded C through M)

4шт.

3

481416R1

SPOOL

- disk, 7-1/2 inch spacing (Disk Harrow coded A or B)

2шт.

(Disk Harrow coded C, D or F)

4шт.

(Disk Harrow coded G or H)

8шт.

(Disk Harrow coded K or L)

12шт.

(Disk Harrow M)

6шт.

3

481417R1

SPOOL

- disk, 9 inch spacing (Disk Harrow coded E)

4шт.

(Disk Harrow coded F)

2шт.

(Disk Harrow coded J)

8шт.

(Disk Harrow coded M)

4шт.

4

472592R3

SPOOL

- bearing, with square center hole, 1-1/2 inch long

1шт.

4

101189C1

SPOOL

- bearing, with round center hole, 1-1/2 inch long (Disk Harrow coded A, B or F)

4шт.

(Disk Harrow coded C or D)

8шт.

(Disk Harrow coded G or K)

8шт.

(Disk Harrow coded M)

4шт.

5

479021R1

BAR

- bearing standard (Disk Harrow coded A or B)

4шт.

(Disk Harrow coded C through M)

8шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

(Disk Harrow coded A or B) 5/8"-11, G5

8шт.

(Disk Harrow coded C through M)

16шт.

6

485740R1

SUPPORT ASSY.

STANDARD - bearing, with anti-friction bearing (Disk Harrow coded B, D, E, F, G, J, K or M)

8шт.

7

652386R1

FLANGE

- bearing mounting (Used with ST659 bearing, item 8)

16шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

8шт.

441485R1

BOLT,Shoulder, Hex, 3/8" - 16 x 1 1/2"

- carriage, 3/8 NC X 1/2 inch

24шт.

492-11038

LOCK WASHER,3/8"

32шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

32шт.
