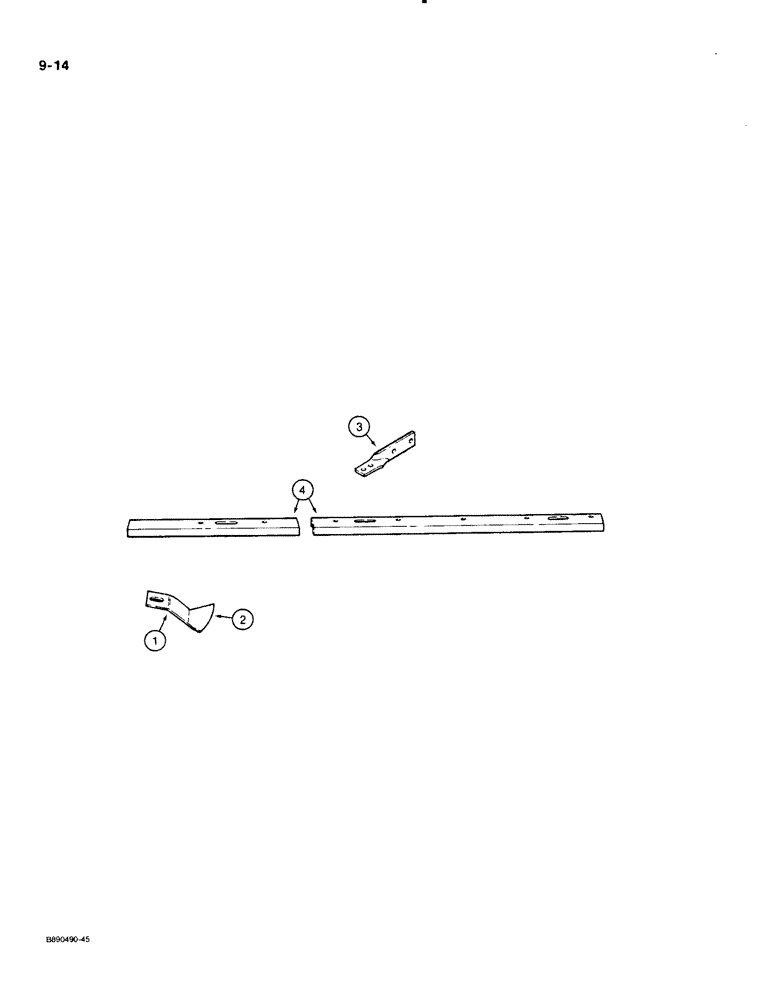

Запчасти Case IH 122 (9-14) - SCRAPERS AND SCRAPER ANGLES (09) - CHASSIS/ATTACHMENTS

1

465060R93

SCRAPER

- left-hand

1шт.

1

465061R93

BLADE

SCRAPER - right-hand (Disk Harrow coded A or B)

3шт.

(Disk Harrow coded C, D or E)

6шт.

(Disk Harrow coded F)

7шт.

(Disk Harrow coded G, H or J)

8шт.

(Disk Harrow coded K or L)

10шт.

(Disk Harrow coded M)

9шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch (2 used per scraper)

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (2 used per scraper) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (2 used per scraper) 1/2"

1шт.

2

543999R1

BLADE

- scraper (1 used per scraper)

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

- truss head, 3/8 x 1 inch (2 used per blade)

1шт.

3

482073R1

BRACKET

- scraper bar (Disk Harrow coded A or B)

4шт.

(Disk Harrow coded C through M)

8шт.

27467R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

(Disk Harrow coded A or B) 5/8"-11, G5

4шт.

(Disk Harrow coded C through M)

8шт.

4

474401R2

ANGLE

- front scraper bar, left-hand (Disk Harrow coded A, B, C or D)

1шт.

4

474402R2

ANGLE

- front scraper bar, right-hand (Disk Harrow coded A, B, C or D)

1шт.

4

470983R2

ANGLE

- rear scraper bar (Disk Harrow coded C or D)

2шт.

4

474412R3

ANGLE

- front scraper bar, left-hand (Disk Harrow coded G or H)

1шт.

4

474413R3

ANGLE

- front scraper bar, right-hand (Disk Harrow coded G or H)

1шт.

4

474414R2

ANGLE

- rear scraper bar (Disk Harrow coded F, G or H)

2шт.

4

474415R2

ANGLE

- front scraper bar, left-hand (Disk Harrow coded E or F)

1шт.

4

474416R2

ANGLE - front scraper bar, right-hand (Disk Harrow coded E or F)

1шт.

4

474417R2

ANGLE

- rear scraper bar, left-hand (Disk Harrow coded E)

1шт.
