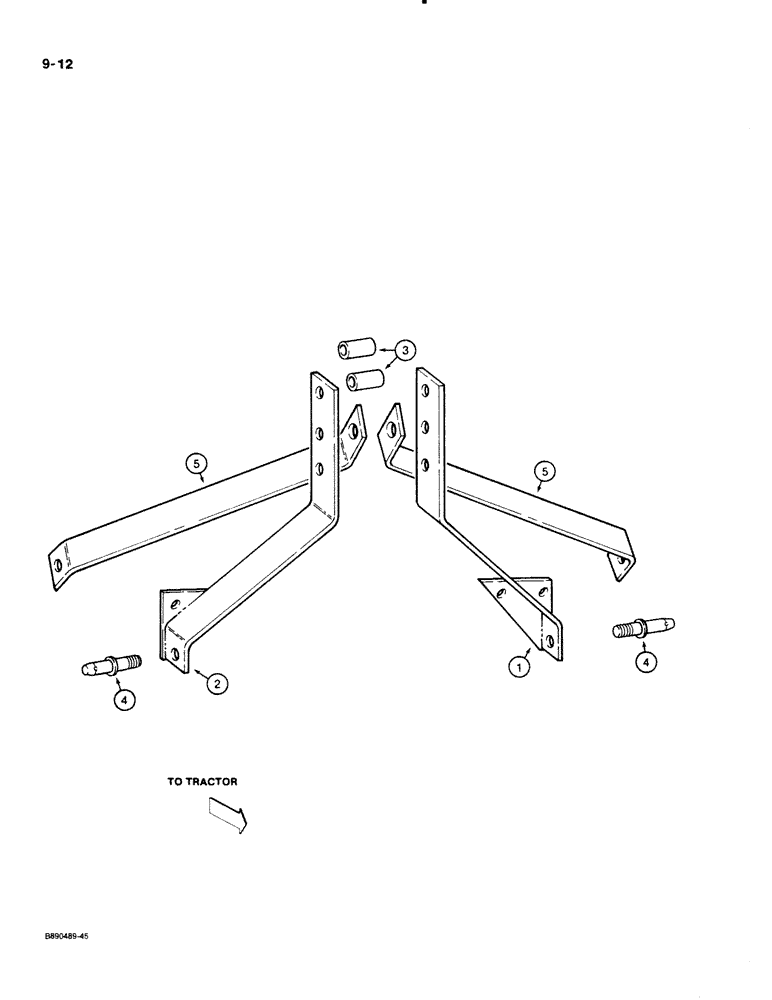

Запчасти Case IH 122 (9-12) - THREE POINT HITCH CATEGORY I, SMALL FRAME DISK HARROW CODED A THROUGH F (09) - CHASSIS/ATTACHMENTS

1

492318R1

SUPPORT

MAST - left-hand

1шт.

2

492319R1

SUPPORT

MAST - right-hand

1шт.

3

465971R1

SPACER

- mast

2шт.

4

525896R1

STUD

PIN - lower link, category 1

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

426767

NUT,7/8"-14, G5

- hex, 7/8 inch NC

2шт.

5

492323R1

BRACE

- mast

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 4-1/4 inch

1шт.

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.
