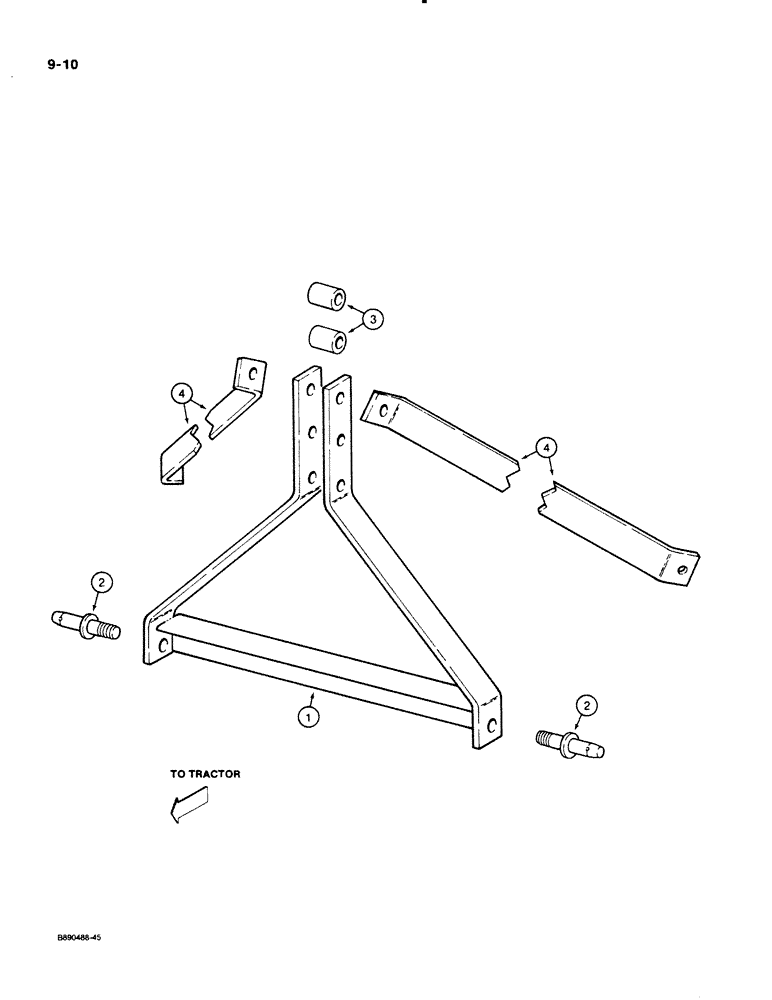

Запчасти Case IH 122 (9-10) - THREE POINT HITCH CATEGORY I, LARGE FRAME (09) - CHASSIS/ATTACHMENTS

1

492298R1

SUPPORT

MAST - hitch

1шт.

2

525896R1

STUD

PIN - lower link, category 1

2шт.

192-29

LOCK WASHER,7/8"

7/8"

2шт.

426767

NUT,7/8"-14, G5

- hex, 7/8 inch NC

2шт.

3

465971R1

SPACER

- mast

2шт.

4

492301R1

BRACE

- mast

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

BOLT - hex, 3/4 NC x 3-3/4 inch

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-1/2 inch

1шт.

131207

LOCK WASHER,3/4"

WASHER - lock, 3/4 inch

2шт.

129-108

NUT,3/4"-10, G5

2шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.
