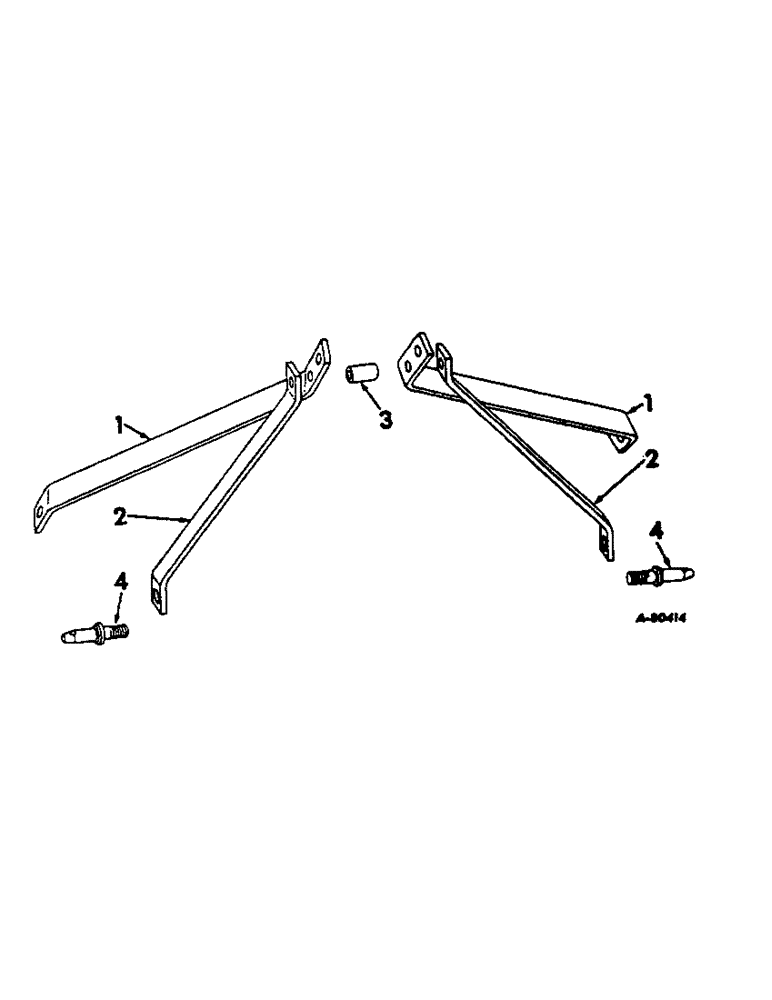

Запчасти Case IH 120 (W-08) - THREE-POINT HITCH COMPLETING PACKAGE

1

474372R1

BAR, mast LH

1шт.

1

474373R1

BAR, mast RH

1шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

SCREW, 5/8-11 x 4-1/2 C-Z type 4 hex-hd cap

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

5шт.

2

474371R1

BRACE, mast

2шт.

3

465971

PROTECTING COVER

SPACER, mast, mast brace L & R to mast bar

1шт.

4

525896R1

STUD

PIN, lower link

2шт.

131047

WASHER,7/8"

7/8"

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.
