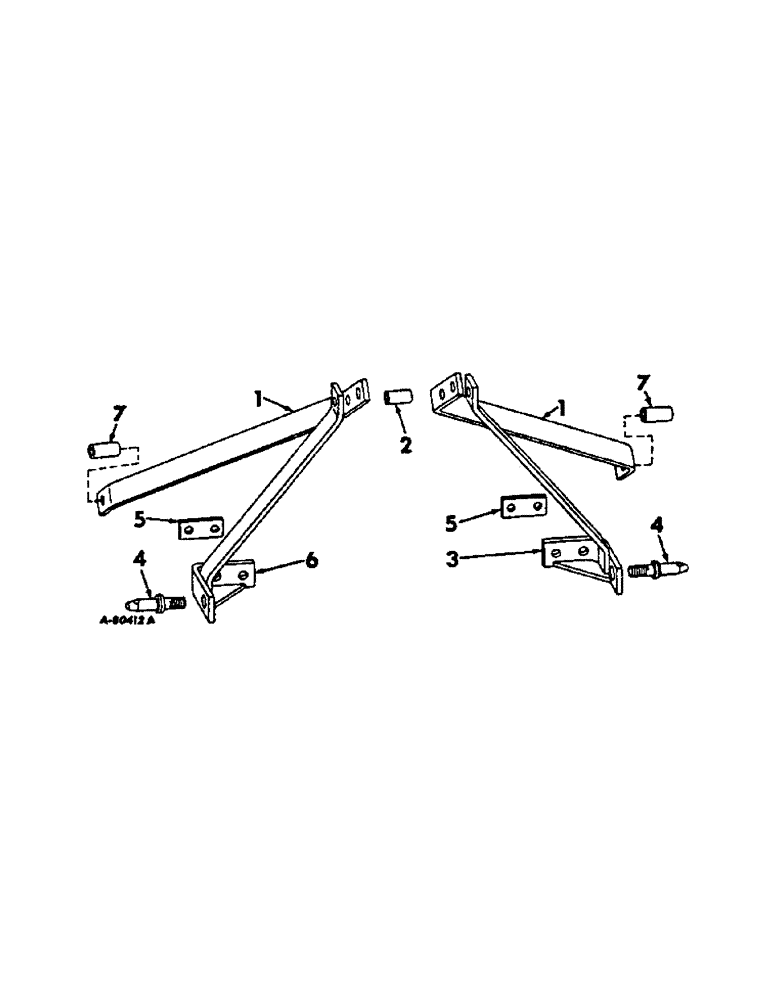

Запчасти Case IH 120 (W-07) - THREE-POINT HITCH COMPLETING PACKAGE

1

474369R1

BAR, mast

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

2

465971R1

SPACER

mast

1шт.

3

474360R91

LINK ASSY, lower LH

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

4

525896R1

STUD

PIN, lower link

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.

5

474368R1

BAR

extension retaining

2шт.

6

474361R91

LINK ASSY, lower RH

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

SCREW, 5/8-11 x 4-1/2 C-Z type 4 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

3шт.

7

PO12482

SPACER,3/4" Pipe x 7/8"

hinge stop bar

2шт.
