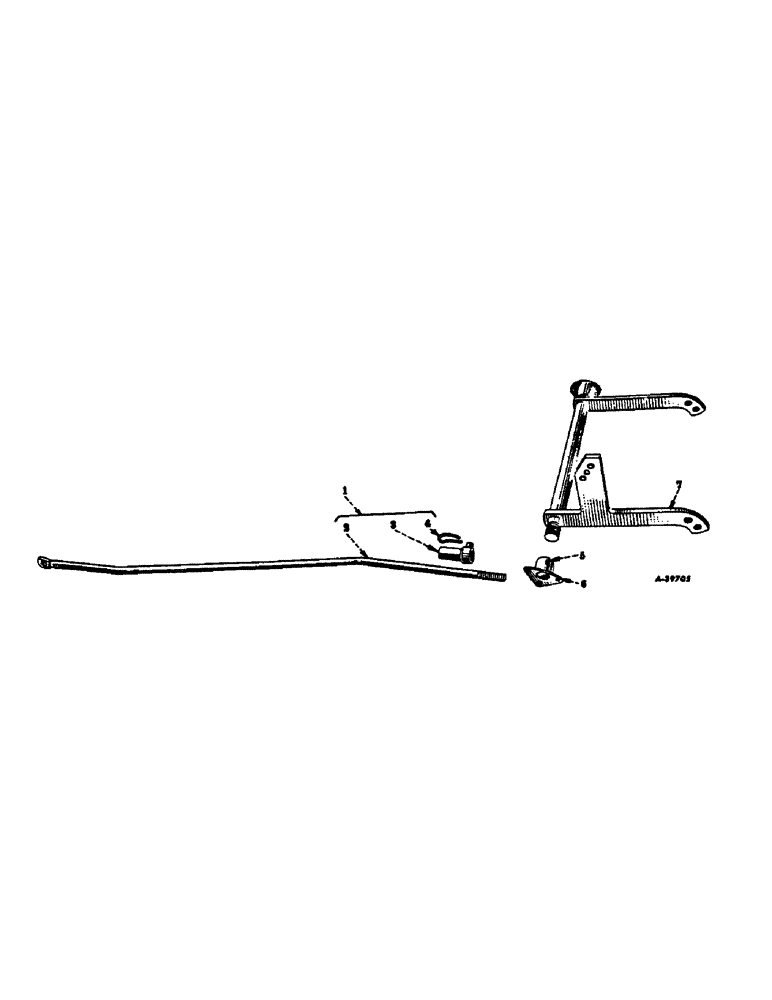

Запчасти Case IH 120 (W-04) - REAR RIGID ROCKSHAFT, POWER LIFT

1

515226R91

ROCKSHAFT

LINK ASSY, rockshaft raising, composed of, (1) link 515059R1, (1) swivel 515060R91

1шт.

2

515059R1

ROD

LINK

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

3

515060R91

END

SWIVEL ASSY, rockshaft link

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

4

PO18499

COTTER PIN

1/4 x 1-1/4 quick attachable cot.

1шт.

5

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type lub

2шт.

6

512447R21

BEARING ASSY

ASSY, rockshaft

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

7

512453R93

ROCKSHAFT

ASSY, raising

1шт.

1431BX

COLLAR CLAMP

COLLAR ASSY, lift link

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 sq-hd cup-pt set

1шт.
