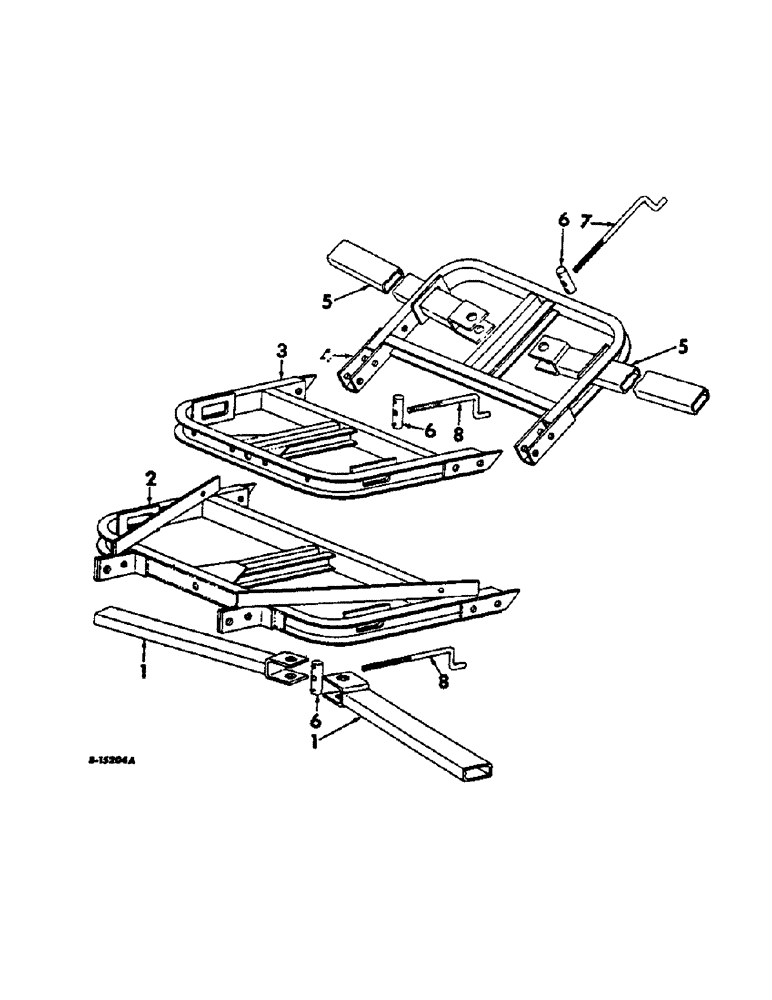

Запчасти Case IH 120 (W-02) - FRONT AND REAR FRAMES AND GANG BAR TUBES
№
Артикул
Название
Примечание
Количество
1
474317R92
TUBE
ASSY, front gang bar, 2 for units A, B & J
1шт.
1
474322R92
TUBE
ASSY, front gang bar, 2 for units C, F, K & M
1шт.
1
479869R91
TUBE ASSY, front gang bar, 2 for units D, E & L
1шт.
473244R1
LOCK NUT,3/4"-10, GB
NUT, 3/4-10 C-Z lock, 4 used with each frame assy
1шт.
2
474292R92
FRAME ASSY, front, units C, F, K & M
1шт.
473244R1
LOCK NUT,3/4"-10, GB
NUT, 3/4-10 C-Z lock, 4 used with each frame assy
1шт.
3
474272R92
FRAME ASSY, front, units A, B, D, E, J & L
1шт.
4
474279R91
FRAME ASSY, rear, units A, B, D, & E
1шт.
4
474298R91
FRAME ASSY, rear, units C & F
1шт.
473244R1
LOCK NUT,3/4"-10, GB
NUT, 3/4-10 C-Z lock, 4 used with each frame assy
1шт.
5
474320R92
TUBE
ASSY, rear gang bar, 2 for units A & B
1шт.
5
474322R92
TUBE
ASSY, rear gang bar, 2 for units D & E
1шт.
5
474326R91
TUBE
ASSY, rear gang bar, 2 for units C & F
1шт.
6
474305R1
BAR
SWIVEL, gang bar RH, 2 used for units A thru H, 1 used for units J thru N
1шт.
13169R1
PIN, 1/4 x 2-1/4 self-opening cot., 2 used with each gang bar swivel
1шт.
103397
COTTER PIN,5/32" x 1 1/4"
Pin, Split (Cotter), , 2 used with each gang bar swivel 5/32" x 1 1/4"
1шт.
7
474301R2
CRANK, rear gang adjusting screw, units A, B, D & E
1шт.
7
474303R2
CRANK, rear gang adjusting screw, units F & C
1шт.
576485R1
LOCK PIN,1/4" x 1 1/4", Slotted
ESNA 1/4" x 1 1/4", Slotted
1шт.
21220R1
WASHER
29/32 x 1-1/4 x 11 ga C-Z
1шт.
8
474300R2
CRANK, front gang adjusting screw, units A, B, D, E, J & L
1шт.
8
474302R2
CRANK, front gang adjusting screw, units C, F, K, & M
1шт.
576485R1
LOCK PIN,1/4" x 1 1/4", Slotted
ESNA 1/4" x 1 1/4", Slotted
1шт.
21220R1
WASHER
29/32 x 1-1/4 x 11 ga C-Z
1шт.
Выбрано товаров: 27
