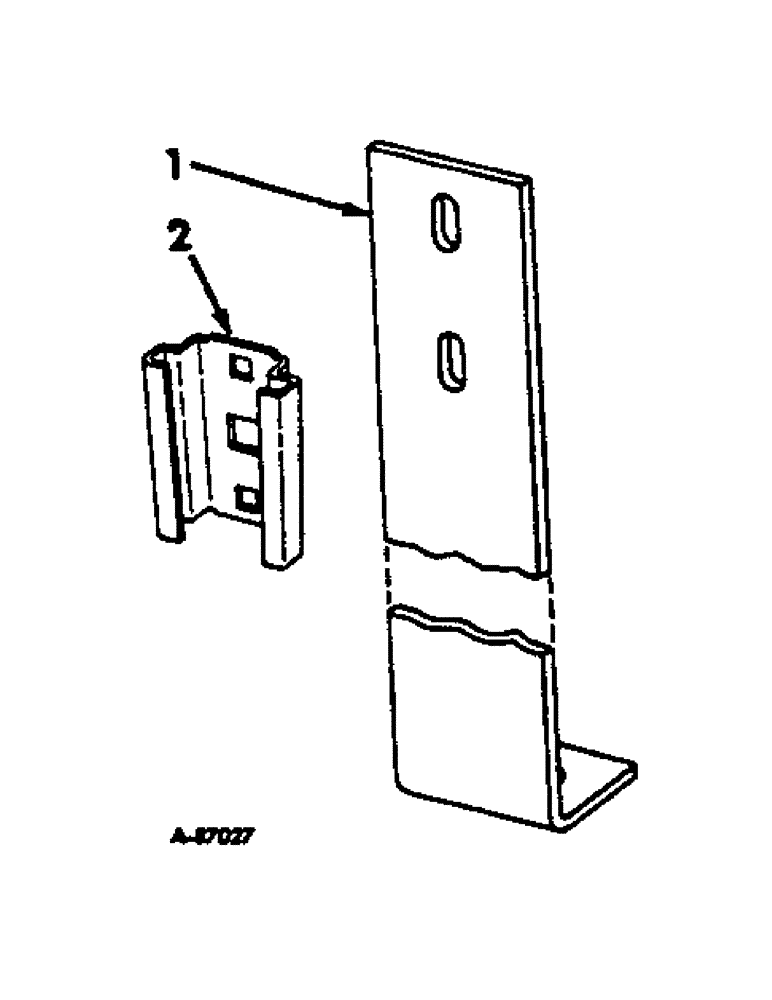

Запчасти Case IH 120 (W-13) - SAFETY LAMP SOCKET UNIT, PRODUCT GRAPHICS

1

521996R2

SUPPORT

BRACKET, safety lamp

1шт.

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 C-Z hex-hd cap

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/16-18 C-Z hex.

1шт.

2

363919R1

SOCKET

safety lamp bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

1001412R2

DECAL

PRODUCT GRAPHIC, IH

1шт.

2751265R1

DECAL

PRODUCT GRAPHIC, International, agricultural

1шт.

2754030R1

PRODUCT GRAPHIC

model designation, agricultural

1шт.

2751254R1

PRODUCT GRAPHIC, International, industrial

1шт.

2754034R1

PRODUCT GRAPHIC

model designation, industrial

1шт.
