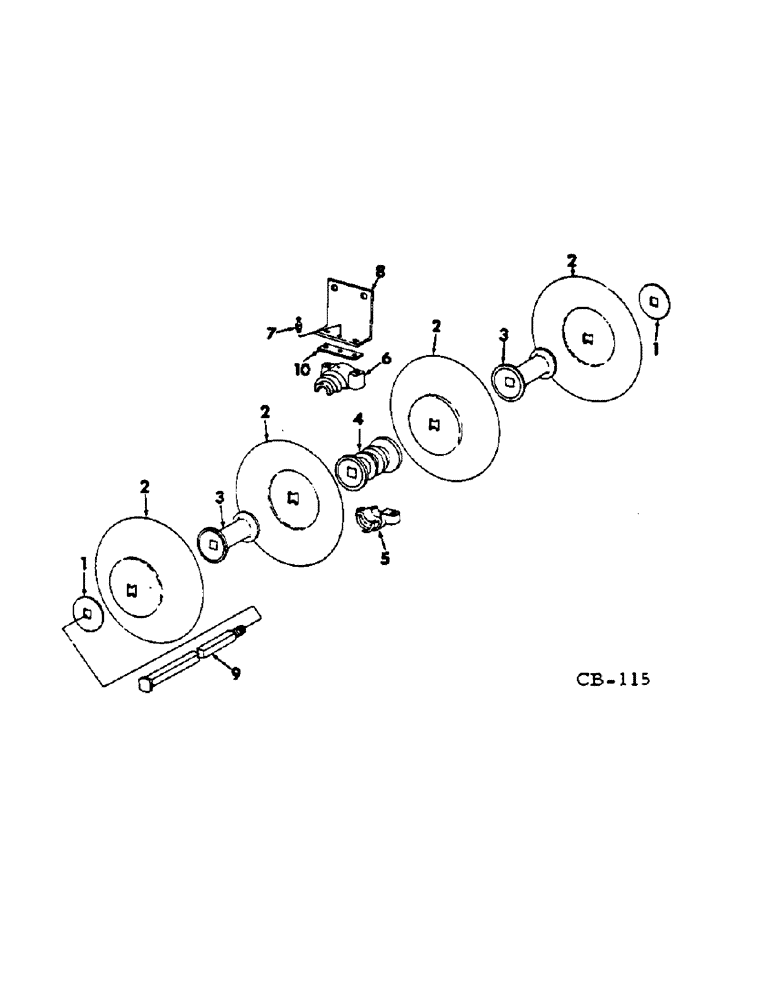

Запчасти Case IH 110 (C-3) - 110 DISK HARROW, BEARING, BLADES AND SPOOLS, PRODUCT GRAPHICS

1

493736R1

WASHER, 31/32 sq hole x 3-1/2 x 1/2

4шт.

1

P4166

SPACER

WASHER, arbor bolt nut, 1-3/8 in. thick

4шт.

2

P24903

DISC

BLADE, 12 ga solid disk 14 in.

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

271732

SWASH PLATE,Hex, 5/8" - 11 x 4 1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

PA821

SPOOL

spacing

8шт.

4

493733R1

SPOOL

brg

4шт.

5

493734R1

CAP

lower brg

4шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

4шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

6

651287R3

CAP

upper brg

4шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

8

493735R1

STANDARD, bearing

4шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

10шт.

9

NLS

NO LONGER SERVICED

BOLT, arbor

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

131047

WASHER,7/8"

7/8"

4шт.

10

493737R1

GASKET

brg

4шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS), PRODUCT GRAPHICS

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS), PRODUCT GRAPHICS

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS), PRODUCT GRAPHICS

1шт.

547496R92

DECAL

PACKAGE, International name product graphics

1шт.

547498R92

DECAL

PACKAGE, International model designation, product graphics

1шт.
