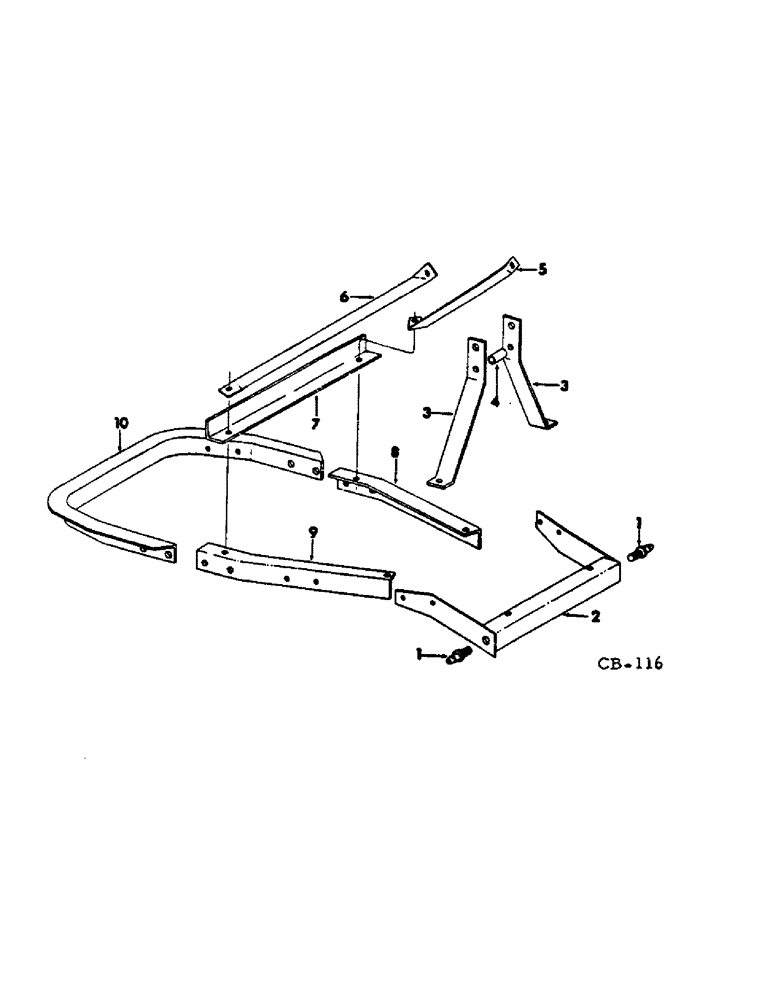

Запчасти Case IH 110 (C-2) - 110 DISK HARROW, MAIN FRAME AND HITCH

1

525896R1

STUD

PIN, link

2шт.

131047

WASHER,7/8"

7/8"

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.

2

493725R1

FRAME ASSY, front

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 znd hex-hd mach

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 C-Z hex. two-way lock

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

3

493738R1

BAR, mast

2шт.

4

195695R1

SPACER,3/4" X-Strng Pipe x 1 3/4"

3/4 x 1.75 pipe

1шт.

5

493740R1

BRACE, hitch RH

1шт.

6

493739R1

BRACE, hitch LH

1шт.

7

493729R1

ANGLE, front frame rear

1шт.

8

493730R1

ANGLE, front frame LH

1шт.

9

493731R1

ANGLE, front frame RH

1шт.

10

493732R1

ANGLE, rear frame

1шт.
