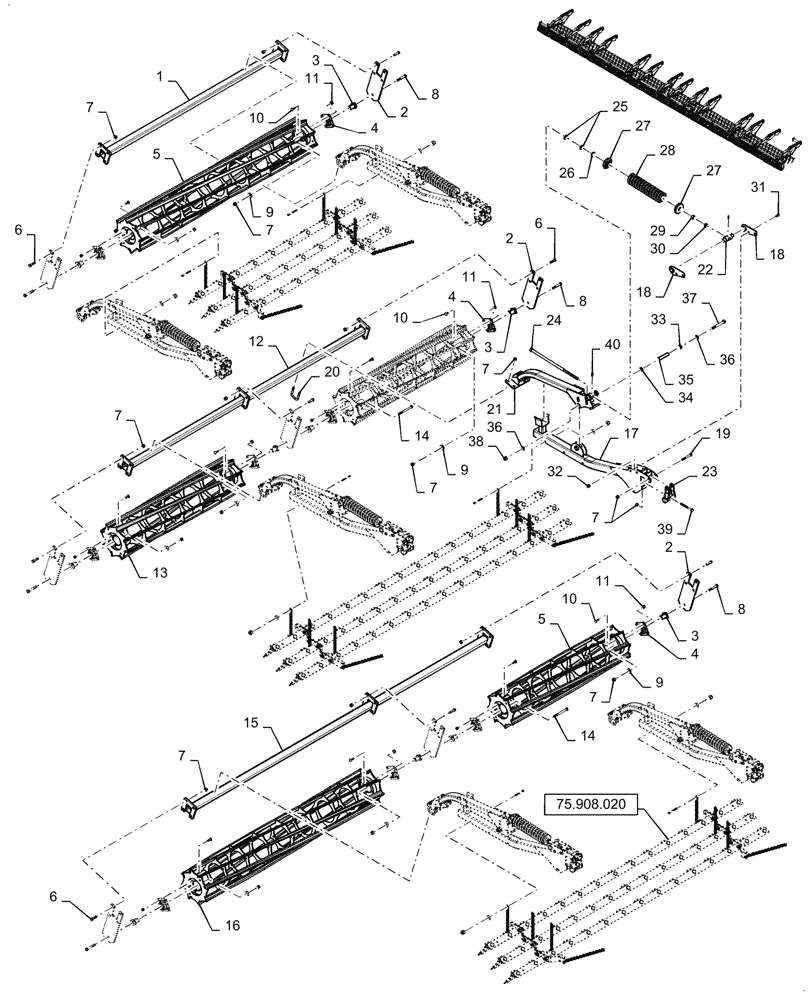

Запчасти Case IH TM255 (75.908.021) - HARROW TINE, 3 BAR SPIKE (75) - SOIL PREPARATION

1

47598753

TUBE

Basket Mount, 90"

1шт.

2

47817917

PLATE

Bearing Hanger

8шт.

3

47453057

SPINDLE

Bearing

10шт.

4

47451691

BEARING CONE

Flanged, Peer

10шт.

5

47449567

BASKET

90" 8 Bar

2шт.

6

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

32шт.

7

85700693

NUT,5/8" - 11, Gr C

47шт.

8

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

6шт.

9

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

10шт.

10

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

40шт.

11

88871

NUT,1/2"-13, GC

40шт.

12

47597584

TUBE

Basket Mount, 120"

1шт.

13

47449563

BASKET

60" 8 Bar

3шт.

14

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

2шт.

15

47596247

TUBE

Basket Mount, 150"

1шт.

16

87485007

COILED PIN

1шт.

17

47846317

ARM

Mount, Spike Harrow

1шт.

18

47846299

PLATE

Side

2шт.

19

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

1шт.

20

87712238

U-BOLT

2шт.

21

47846323

ARM

Rear Mount

1шт.

22

06407125

TRUNNION

Pivot, End

1шт.

23

47746969

CLAMP

Mount

1шт.

24

16901495

SPECIAL BOLT

1шт.

25

17915000

WASHER

2шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1шт.

27

20090120

SPRING BOX

Double

2шт.

28

47470094

SPRING

Compression

1шт.

29

9849647

NUT,7/8"-9, G5

1шт.

30

47609158

NUT

1шт.

31

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

32

88871

NUT,1/2"-13, GC

4шт.

33

17616011

BUSHING

1шт.

34

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1шт.

35

06407149

BUSHING

1шт.

36

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

37

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

38

280375

NUT,3/4"-10, GC

1шт.

39

86542820

BOLT,Hex, 5/8"-11 x 5 1/2", G8

2шт.

40

87414

LUBE NIPPLE,1/4" - 28

2шт.
