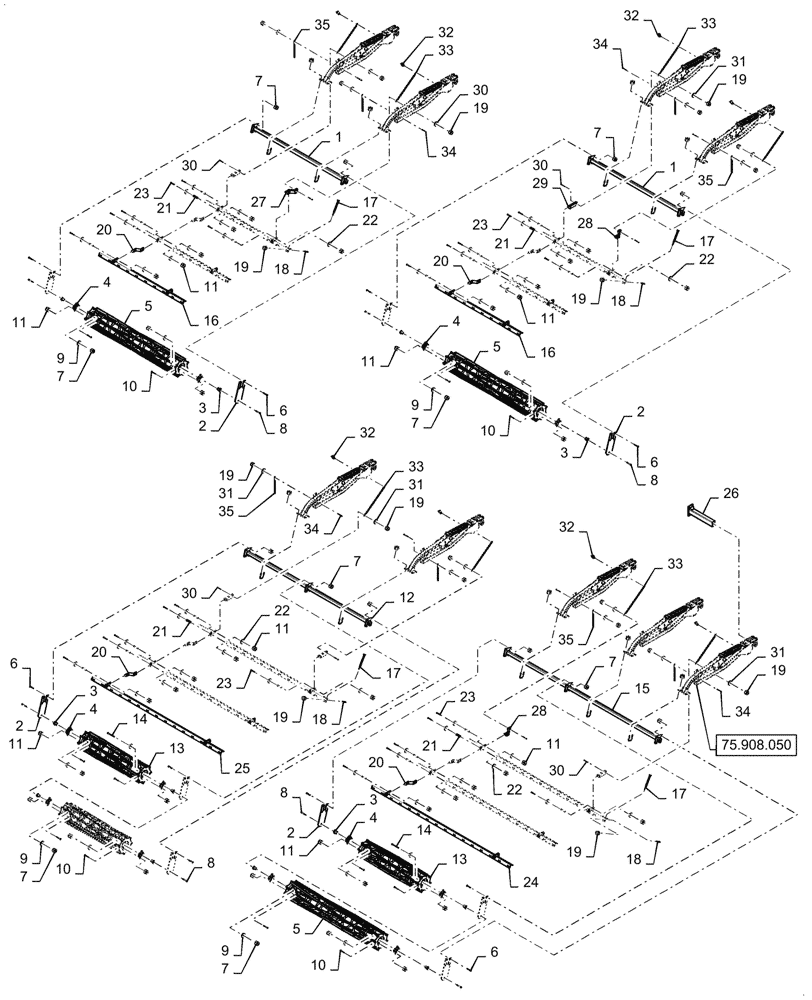

Запчасти Case IH TM255 (75.908.020) - ACS, 3 BAR SPIKE (75) - SOIL PREPARATION

1

47598753

TUBE

Basket Mount, 90"

2шт.

2

47817917

PLATE

Bearing Hanger

16шт.

3

47453057

SPINDLE

Bearing, Hard

20шт.

4

47451691

BEARING CONE

Flanged, Peer

20шт.

5

47449567

BASKET

8 Bar, 90"

4шт.

6

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

64шт.

7

85700693

NUT,5/8" - 11, Gr C

80шт.

8

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

12шт.

9

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

20шт.

10

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

80шт.

11

88871

NUT,1/2"-13, GC

140шт.

12

47597584

TUBE

Basket Mount, 120"

2шт.

13

47449563

BASKET

8 Bar, 60"

6шт.

14

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

4шт.

15

47596247

TUBE

Basket Mount, 150"

2шт.

16

47959195

ANGLE

10 Spike

6шт.

17

33407513

SHOVEL

Harrow

246шт.

18

16306050

U-BOLT

246шт.

19

88902

NUT,3/8"-16

576шт.

20

47859141

PLATE

Harrow

24шт.

21

02323001

BUSHING

60шт.

22

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

120шт.

23

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

60шт.

24

47977127

ANGLE

16 Spike

6шт.

25

47977131

ANGLE

15 Spike

6шт.

26

47796613

TUBE

23.5" Stub

1шт.

27

47962956

LINK BLOCK

Harrow, LH Pull

2шт.

28

47962957

LINK BLOCK

Harrow, RH Pull

3шт.

29

47962958

LINK BLOCK

Harrow, Straight Pull

7шт.

30

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

31

17407015

WASHER

84шт.

32

270184

LINCH PIN,6.35mm OD

12шт.

33

47963674

CHAIN

1/4 x 25.5 Long

12шт.

34

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

36шт.

35

47963675

CHAIN

1/4 x 14.28 Long

36шт.
