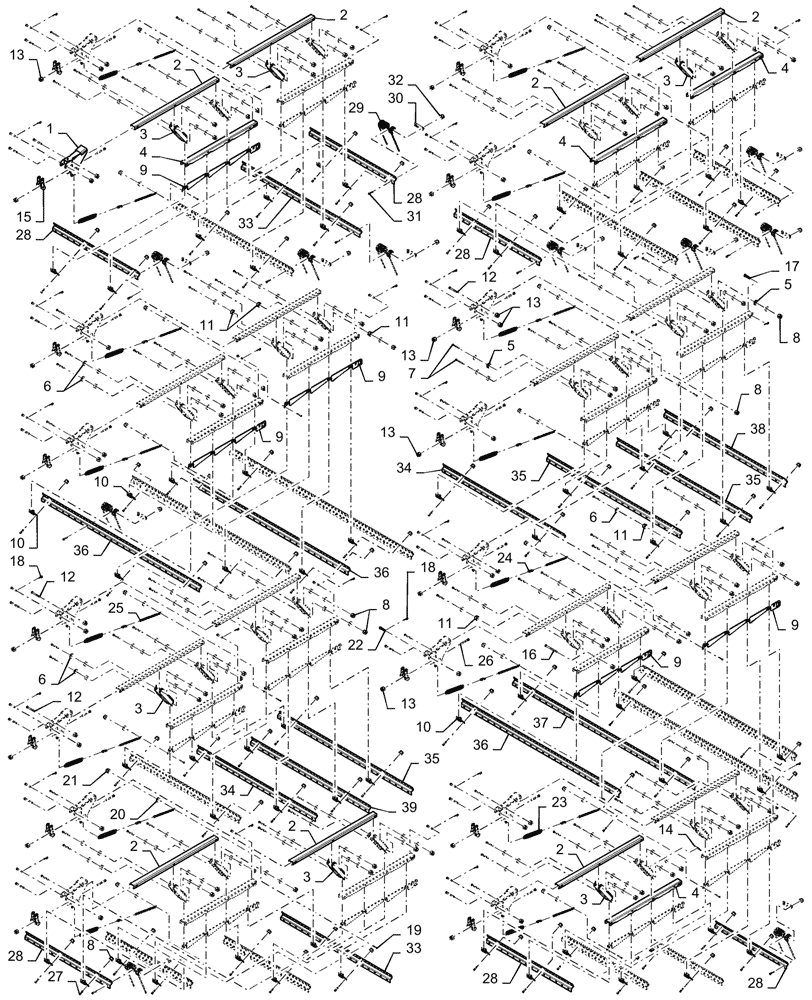

Запчасти Case IH TM255 (75.908.010[CHANGE]) - HARROW TINE, BAR ASSY (75) - SOIL PREPARATION

1

47746957

BRACKET

Arm

1шт.

2

06404160

TUBE,58.13" Length

Mount, Extension

7шт.

3

87457435

ARM

Parallel, 14.5"

6шт.

4

84471485

CHANNEL

Formed

1шт.

5

87457432

BUSHING,12.95mm ID x 25.4mm OD x 7.37mm L

4шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

7

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

8

88871

NUT,1/2"-13, GC

14шт.

9

06404120

ADJUSTER

Tine Slide

1шт.

10

47557046

HINGE

Tine Casting

4шт.

11

87457434

BUSHING,12.95mm ID x 25.4mm OD x 13.46mm L

4шт.

12

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

2шт.

13

85700693

NUT,5/8" - 11, Gr C

4шт.

14

18534380

DECAL

Reflector, Amber

1шт.

15

47746969

CLAMP

Mount

1шт.

16

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

2шт.

17

14810251

HEADED PIN,15.88mm OD x 96.77mm L

1шт.

18

14720411

COTTER PIN

1/8" x 2"

2шт.

19

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

20

17407015

WASHER

1шт.

21

88902

NUT,3/8"-16

1шт.

22

14810275

CLEVIS

1шт.

23

87453100

COIL SPRING

1шт.

24

22105011

LINK ASSY.

1шт.

25

22004161

CHAIN,528.57mm L

1шт.

26

86542820

BOLT,Hex, 5/8"-11 x 5 1/2", G8

2шт.

27

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

28

47746953

CHANNEL,CHANNEL, TINE, 60.68 IN

Tine

13шт.

29

47559052

TINE

Spring

1шт.

30

47957741

CLAMP

Tine

1шт.

31

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

32

88871

NUT,1/2"-13, GC

1шт.

33

47746951

CHANNEL,CHANNEL, TINE, 78.02 IN

Tine

4шт.

34

47746955

CHANNEL,CHANNEL, TINE, 86.69 IN

Tine

2шт.

35

47746942

CHANNEL,CHANNEL, TINE, 95.35 IN

Tine

3шт.

36

47765837

CHANNEL,CHANNEL, TINE, 112.69 IN

Tine

5шт.

37

47765890

CHANNEL,CHANNEL, TINE, 130.02 IN

Tine

3шт.

38

47980774

CHANNEL,CHANNEL, TINE, 84.5 IN, OFFSET, RH

Tine

1шт.

39

47980758

CHANNEL,CHANNEL, TINE, 84.5 IN, OFFSET, LH

Tine

1шт.
