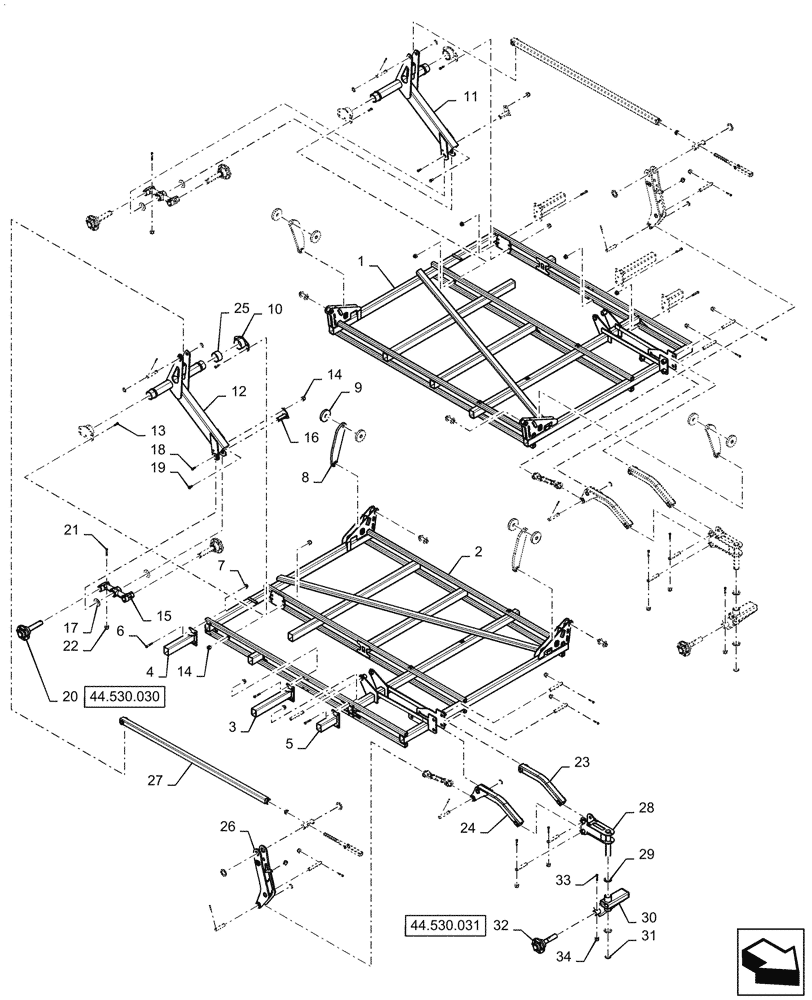

Запчасти Case IH TM255 (39.100.088) - OUTER WING DOUBLE FOLD FLOATING HITCH 60 FOOT (39) - FRAMES AND BALLASTING

1

47823057

FRAME

Left Outer Wing

1шт.

2

47823055

FRAME

Right Outer Wing

1шт.

3

47796613

TUBE

2.5" Stub

2шт.

4

47873862

TUBE

17" Stub

2шт.

5

47796614

TUBE

10.75" Stub

2шт.

6

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

24шт.

7

84180923

FLANGE NUT

.625"

24шт.

8

47674815

LINKAGE

4шт.

9

84257918

ROLLER

Outer Wing

8шт.

10

47801178

SUPPORT

Rockshaft

1шт.

11

47757280

FRAME

Left Wing Rockshaft

1шт.

12

47757281

FRAME

Right Wing Rockshaft

1шт.

13

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

14

85700693

NUT,5/8" - 11, Gr C

18шт.

15

47920071

CASTER

Walking Beams

2шт.

16

47922232

PIN

1.75" OD

2шт.

17

47733606

WASHER

Nylon 1.75" OD

4шт.

18

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

19

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

20

47842667

HUB

6 Bolt 783

4шт.

21

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

22

88871

NUT,1/2"-13, GC

4шт.

23

47654836

LINKAGE

Upper Gauge

2шт.

24

47908170

LINKAGE

Lower Gauge

2шт.

25

47753605

BUSHING

Nylatron

1шт.

26

47755888

LINK BLOCK

Wing Rocker

2шт.

27

47755883

TUBE

Depth Adjustment

2шт.

28

47890562

BRACKET

Gauge Wheel

1шт.

29

87698859

WASHER,2.31" ID x 3.5" OD x 0.25" Thk

2шт.

30

47890578

FRAME

Pivoting Gauge Wheel

1шт.

31

11069671

SNAP RING,M56, Ext

56mm

1шт.

32

28078350

HUB ASSY.

Spindle 783

1шт.

33

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

34

88871

NUT,1/2"-13, GC

1шт.
