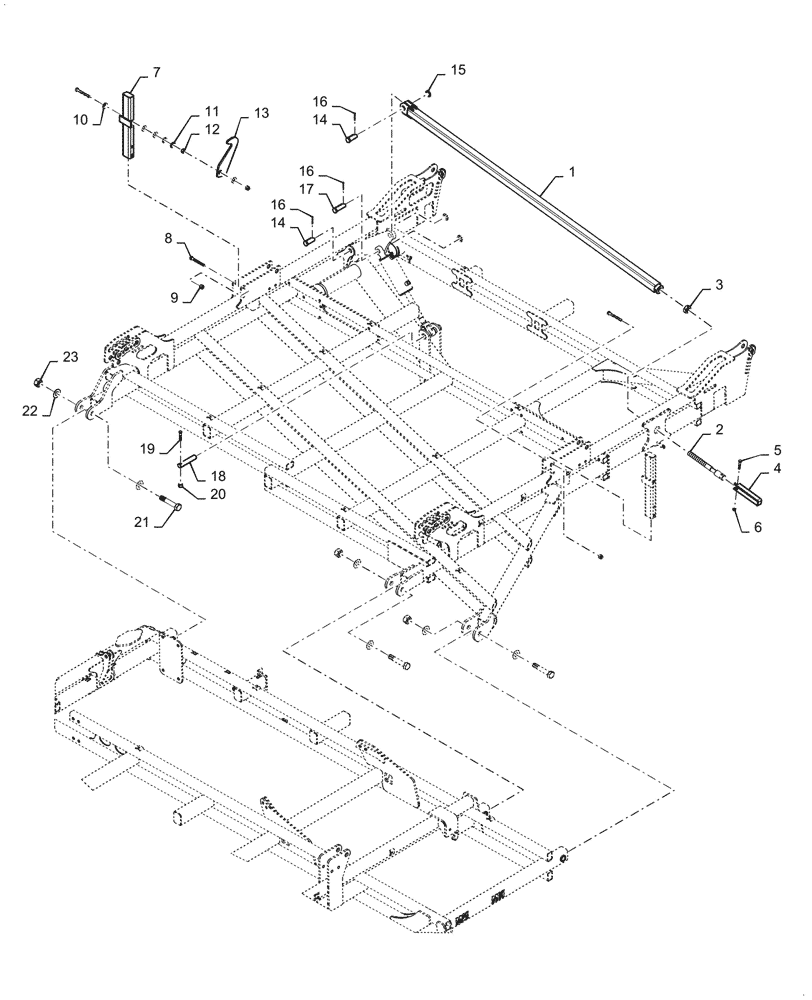

Запчасти Case IH TM255 (39.100.081) - INNER WING 55,60 PULL HITCH CONTINUED (39) - FRAMES AND BALLASTING

1

47879139

TUBE

Wing Adjustment Link

1шт.

2

47880190

SCREW

Depth Adjustment

1шт.

3

6447

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

4

06400160

CRANKED HANDLE

1шт.

5

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

6

88871

NUT,1/2"-13, GC

1шт.

7

47867123

STOP

Rear Wing

4шт.

8

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

10шт.

9

85700693

NUT,5/8" - 11, Gr C

10шт.

10

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

11

17618030

BUSHING

1.125"

4шт.

12

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

2шт.

13

84126353

PLATE

2шт.

14

84156992

PIN

1.250 x 3.00"

4шт.

15

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

16

88182

COTTER PIN,1/4" OD x 2" L

6шт.

17

84156994

CLEVIS PIN

1.250 x 3.75"

2шт.

18

47922239

PIN

1.25" x 6.57"

2шт.

19

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

20

88871

NUT,1/2"-13, GC

2шт.

21

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

6шт.

22

47733622

WASHER

1.25 ID x 2.75 OD

12шт.

23

86992220

NUT

1.25"

6шт.
