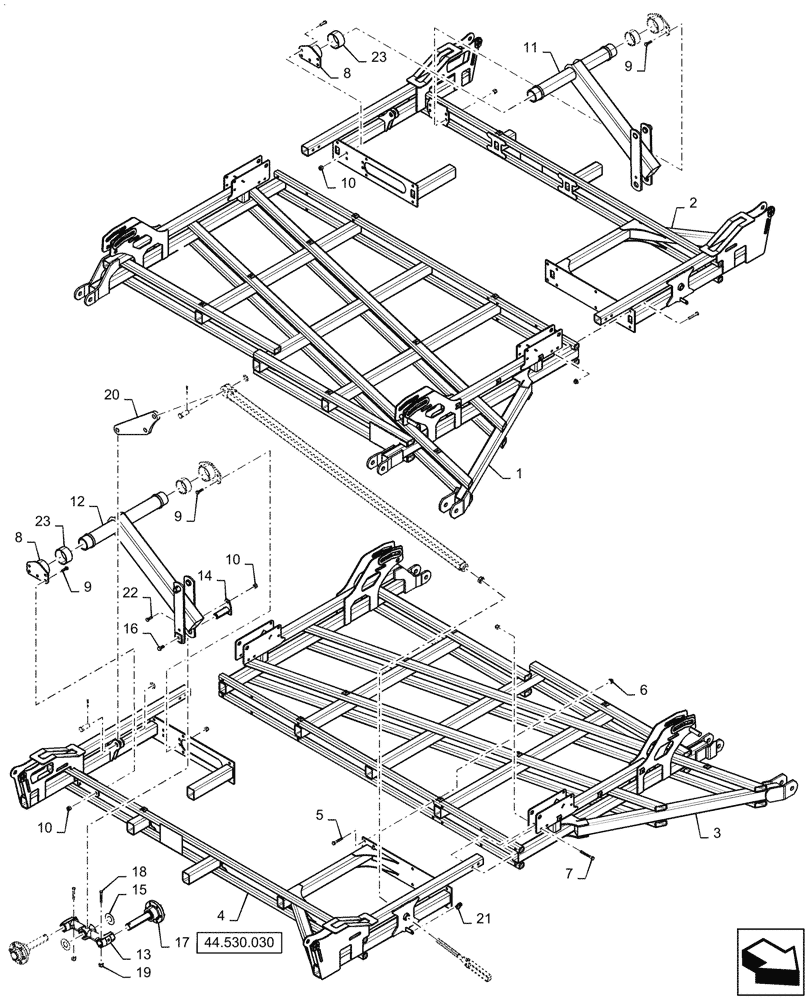

Запчасти Case IH TM255 (39.100.080) - INNER WING 55,60 PULL HITCH (39) - FRAMES AND BALLASTING

1

47772500

FRAME

Left Inner Wing Inner Splice

1шт.

2

48032315

FRAME

Left Inner Wing Outer Splice

1шт.

3

47772482

FRAME

Right Inner Wing Inner Splice

1шт.

4

48032748

FRAME

Right Inner Wing Outer Splice

1шт.

5

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

28шт.

6

84180923

FLANGE NUT

.625"

28шт.

7

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

8

47801178

SUPPORT

Rockshaft

1шт.

9

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

10

85700693

NUT,5/8" - 11, Gr C

26шт.

11

47795651

FRAME

Left Wing Rockshaft

1шт.

12

47795652

FRAME

Right Wing Rockshaft

1шт.

13

47920071

CASTER

Walking Tandems

2шт.

14

47922232

PIN

Flag 1.75" OD

2шт.

15

47733606

WASHER

1.75 ID x 3.75" OD

4шт.

16

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

17

47842667

HUB

6 Bolt 783

4шт.

18

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

19

88871

NUT,1/2"-13, GC

4шт.

20

47776477

PLATE

Wing Rocker

2шт.

21

D33805

PIN

Klik

2шт.

22

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

23

47753605

BUSHING

Nylatron

1шт.
